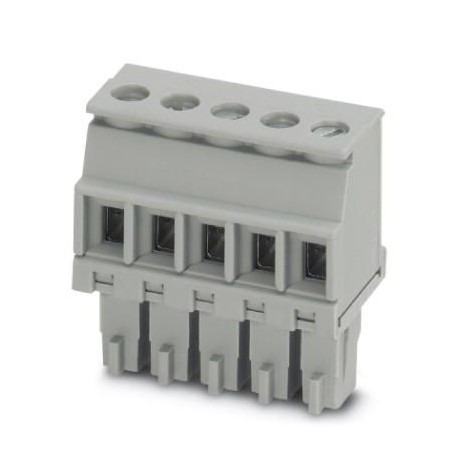

PHOENIX CONTACT BCVP-381R- 5 GN BCVP-381R- 5 GN 5449555 PHOENIX CONTACT Part plug,nominal Current: 8 A,rated Voltage (III/2): 160 V,N. º pol.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BCVP-381R- 5 GN 5449555 PHOENIX CONTACT Part plug,nominal Current: 8 A,rated Voltage (III/2): 160 V,N. º pol..

BCVP-381R- 5 GN

5449555

PHOENIX CONTACT

250 Pcs.

Part plug,nominal Current: 8 A,rated Voltage (III/2): 160 V,N. º poles: 5,Pitch: 3,81 mm,the Technique of connection: Connection by screw with capsule-traction,Color: whitish green,contact Surface: Tin

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Commercial data

Order key5449555
Packaging unit50 pcs
Sell keyAAYCBA -
Minimum Order Quantity100 pcs
Ean4046356839990
Weight per unit (excluding packaging)4,246 g
Tariff rate number85366990
Country of originDE (Germany)

Dimensions

Height [ h ]12.5 mm
Step3.81 mm
Medium to15.24 mm

General

Article FamilyBCVP-R
Number of poles5
Connection typeScrew connection with traction capsule
Insulating material groupI
Dimensioning transient voltage (III/3)2.5 kV
Dimensioning Transient Voltage (III/2)2.5 kV
Dimensioning transient voltage (II/2)2.5 kV
Sizing voltage (III/3)160 V
Dimensioning voltage (III/2)160 V
Sizing voltage (II/2)320 V
Standard-compliant connectionEN-VDE
Nominal Current IN8 A
Nominal Section1.5 mm²
Maximum Charging Current8 A (with a conductor cross-section of 1.5 mm²)
IsolationPA
Combustibility class according to UL 94V0
Length to be de-insulated7 mm
Screw threadM2
Min. tightening torque.0.22 Nm
Max. tightening torque.0.25 Nm

Connection data

Rigid conductor section min.0.2 mm²
Max. rigid conductor section1.5 mm²
Flexible conductor section min.0.2 mm²
Max. flexible conductor section1.5 mm²
Flexible conductor section with toe cap, without min plastic sleeve.0.25 mm²
Flexible conductor section with toe cap, without plastic sleeve max.1.5 mm²
Flexible conductor section with tip, with min plastic sleeve.0.25 mm²
Flexible conductor section with ferrule, with plastic sleeve max.0.5 mm²
Conductor section AWG min.24
Conductor section AWG max.16
2 conductors with the same cross-section, rigid min.0.2 mm²
2 conductors with the same cross-section, rigid max.0.5 mm²
2 conductors with the same cross-section, flexible min.0.2 mm²
2 conductors with the same cross-section, flexible max.0.75 mm²
2 conductors with the same cross-section, flexible with HAE, without min plastic sleeve.0.25 mm²
2 conductors with the same cross-section, flexible with HAE without plastic sleeve max.0.34 mm²
2 conductors with the same cross-section, flexible with TWIN-AEH, with min plastic sleeve.0.5 mm²
2 conductors with the same cross-section, flexible with TWIN-HAE with plastic sleeve max.0.5 mm²

Standards & Specifications

Standard-compliant connectionEN-VDE
CUL
Combustibility class according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSTime Span for Intended Use (EFUP): 50 years
You can find information about hazardous substances in the manufacturer's declaration under the "Downloads" tab
