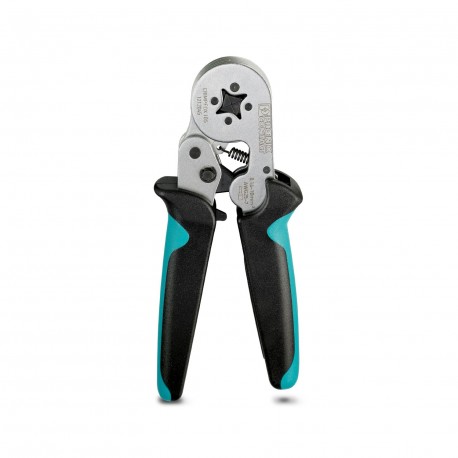

PHOENIX CONTACT CRIMPFOX 10S CRIMPFOX 10S 1212045 PHOENIX CONTACT Crimping pliers View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CRIMPFOX 10S 1212045 PHOENIX CONTACT Crimping pliers

CRIMPFOX 10S

1212045

PHOENIX CONTACT

1 Pcs.

Crimping pliers Crimp clamp, for ferrules without insulating collar according to DIN 46228 part 1 and ferrules with insulating collar according to DIN 46228 part 4, 0.14 mm² ... 10 mm², unlockable forced lock, side insertion Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.14 mm2 ... 10 mm2, unlockable pressure lock, lateral entry

Cables > Crimp tool cable lugs, cable end sleeves, screen connection
TOOL fox

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
Environmental Product Compliance
California Proposition 65Further information on California's prop. 65 is available under "Downloads" in the manufacturer's declaration
Product properties
Product typeCrimping tool
CompressionSquare crimp
Crimping position 1
Min. cross section0.14 mm²
Max. cross section10 mm²
AWG min25
AWG max7
Connection data
Conductor connection
Cross section range, metric0.14 mm² ... 10 mm²
Cross section range AWG25 ... 7
Dimensions
Length175 mm
Material specifications
Colorblack

ETIM for 1212045 Cable cutting and crimping tools (EC000168)
Feature Name Feature Value
Cross section (EF003929) 0.14 mm²
Length (EF001438) 175 mm
With locking device (for mechanical tools) (EF001817) Yes
