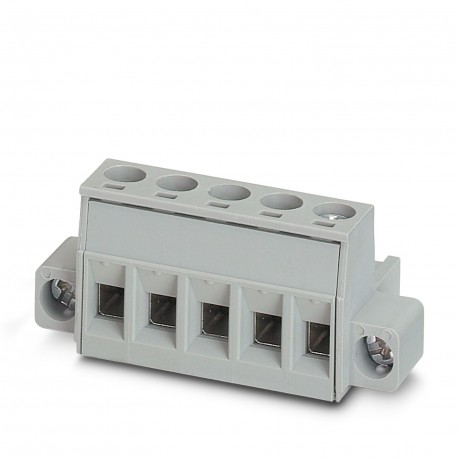

PHOENIX CONTACT BCP-508F-17 GN BD:1-17 BCP-508F-17 GN BD:1-17 1098474 PHOENIX CONTACT Connector for printed circuit board, number of poles: 17, pit.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BCP-508F-17 GN BD:1-17 1098474 PHOENIX CONTACT Connector for printed circuit board, number of poles: 17, pit..

BCP-508F-17 GN BD:1-17

1098474

PHOENIX CONTACT

2000 Pcs.

Connector for printed circuit board, number of poles: 17, pitch: 5,08 mm, color: whitish green Connector for printed circuit board, nominal cross-section: 2.5 mm², color: off-white green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Female, number of rows: 1, number of poles: 17, article family: BCP-F, pitch: 5.08 mm, connection type: Screw connection with traction capsule, screw clamping method: H1L Philipps-Recess with longitudinal groove, connection direction conductor/printed circuit board: 0 °, clamping hook: - without clamping hook, plug-in system: BASICLINE 2.5, locking: Screw lock, fixing type: Air clamping (screw), packaging type: boxed

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Item Properties
Product TypePrinted Circuit Board Connector
Product FamilyBCP-F
Product LineCOMBICON Connectors M
Number of poles17
Step5.08 mm
Number of rows1
Data Maintenance Status
Article Review01
Electrical Properties
Nominal Current IN12 A
Nominal voltage UN320 V
Sizing voltage (III/3)250 V
Dimensioning transient voltage (III/3)4 kV
Dimensioning voltage (III/2)320 V
Dimensioning Transient Voltage (III/2)4 kV
Nominal voltage (II/2)630 V
Dimensioning transient voltage (II/2)4 kV
Connection data
Connection technology
ConstructionStandard
Connector SystemBASICLINE 2.5
Nominal Section2.5 mm²
Contact Connection TypeFemale
Blockade
Locking systemScrew lock
Clamping flangeOverhead clamping (screw)
Tightening torque0.3 Nm
Connecting Conductors
Connection typeScrew connection with traction capsule
Connection Direction Driver/PCB0 °
Rigid conductor section0.2 mm² ... 2.5 mm²
Flexible conductor section0.2 mm² ... 2.5 mm²
AWG Conductor Section24 ... 12
Flexible conductor section with toe cap, without plastic sleeve0.25 mm² ... 2.5 mm²
Flexible conductor section with toe cap, with plastic sleeve0.25 mm² ... 2.5 mm²
2 conductors with the same cross-section, rigid0.2 mm² ... 1 mm²
2 conductors with the same cross-section, flexible0.2 mm² ... 1.5 mm²
2 conductors of equal cross-section, flexible with toe cap, without plastic sleeve0.25 mm² ... 1 mm²
2 conductors with the same cross-section, flexible with TWIN toe cap with plastic sleeve0.5 mm² ... 1.5 mm²
Male gauge a x b / Diameter2.8 mm x 2.0 mm / 2.4 mm
Peel Length7 mm
Drive shape: screw headPhilipps-Recess with longitudinal groove (H1L)
Tightening torque0.4 Nm ... 0.5 Nm
Material Data
Material data - contact
ObservationWEEE/RoHS compliant, filament-free according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu Alloy
Surface CharacteristicsMalleable cast iron tinning
Metal surface of the terminal point (top layer)Tin (4 - 8 μm Sn)
Metal surface contact area (top layer)Tin (4 - 8 μm Sn)
Material data - housing
Color (Housing)off-white green (6019)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability class according to UL 94V0
Flammability number of GWFI incandescent filaments according to EN 60695-2-12850
Ignition temperature of incandescent filaments GWIT according to EN 60695-2-13775
Ball hardness test temperature according to EN 60695-10-2125 °C
Dimensions
Dimension Schemeedyvovzxrs.jpg
Step5.08 mm
Width [w]96.38 mm
Height [h]15 mm
Length [l]18.2 mm
assembly
bridle
Tightening torque0.3 Nm
Environmental and life-life conditions
Environmental conditions
Ambient Temperature (Service)-40 °C ... 100 °C (depending on the rating curve)
Ambient Temperature (Storage/Transport)-40 °C ... 70 °C
Relative humidity of the air (storage/transport)30 % ... 70 %
Ambient Temperature (Mounting)-5 °C ... 100 °C
Electrical Testing
Creepage Lines & Air Isolation Distances
Test SpecificationDIN EN 60664-1 (VDE 0110-1):2008-01
Insulating material groupI
Resistance to leakage currents (DIN EN 60112 (VDE 0303-11))CTI 600
Sizing Insulation Voltage (III/3)250 V
Nominal transient voltage (III/3)4 kV
minimum value of air insulation distance - non-homogeneous field (III/3)3 mm
Minimum creepage line value (III/3)3.2 mm
Sizing Insulation Voltage (III/2)320 V
Nominal transient voltage (III/2)4 kV
Minimum Value of Air Insulation Distance - Non-Homogeneous Field (III/2)3 mm
Minimum creepage line value (III/2)3 mm
Sizing Insulation Voltage (II/2)630 V
Nominal transient voltage (II/2)4 kV
Minimum Value of Air Insulation Distance - Non-Homogeneous Field (II/2)3 mm
Minimum creepage line value (II/2)3.2 mm
Packaging Information
Type of packagingBoxed Packaging
