PHOENIX CONTACT BCP-508-7 GY PA 1,3,5,7 BCP-508- 7 GY PA 1,3,5,7 5775315 PHOENIX CONTACT Part plug,nominal Current: 12 A,N. º poles: 7,Pitch: 5,08 m.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

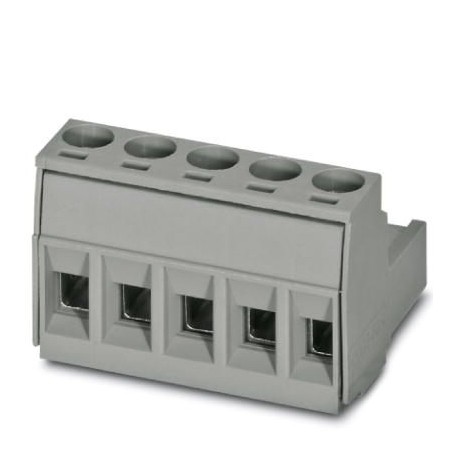

BCP-508- 7 GY PA 1,3,5,7 5775315 PHOENIX CONTACT Part plug,nominal Current: 12 A,N. º poles: 7,Pitch: 5,08 m..

BCP-508-7 GY PA 1,3,5,7

5775315

PHOENIX CONTACT

100 Pcs.

Part plug,nominal Current: 12 A,N. º poles: 7,Pitch: 5,08 mm,the Technique of connection: Connection by screw with capsule-traction,Color: gray signs,contact Surface: Tin Connector for printed circuit board, nominal section: 2.5 mm², color: gray signals, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Female, number of potentials: 4, number of rows: 1, number of poles: 7, number of connections: 4, article family: BCP, pitch: 5.08 mm, connection type: Screw connection with traction capsule, screw clamping method: H1L Philipps-Recess with longitudinal groove, conductor connection direction/printed circuit board: 0 °, clamping hook: - Clamping hook, plug-in system: BASICLINE 2.5, locking: without, fixing type: without, packaging type: packed in box

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Commercial data

Order key5775315
Packaging unit100 pcs
Sell keyAAYBAA -
Minimum Order Quantity100 pcs
Ean4046356544276
Weight per unit (excluding packaging)7,744 g
Tariff rate number85366990
Country of originCN (China)

Dimensions

Length [ l ]18.2 mm
Width [ w ]35.56 mm
Height [ h ]15 mm
Step5.08 mm
Medium to30.48 mm

General

Article FamilyBCP
Number of poles7
Connection typeScrew connection with traction capsule
Standard-compliant connectionEN-VDE
Nominal Current IN12 A
Nominal Section2.5 mm²

Connection data

Rigid conductor section min.0.2 mm²
Max. rigid conductor section2.5 mm²
Flexible conductor section min.0.2 mm²
Max. flexible conductor section2.5 mm²
Flexible conductor section with toe cap, without min plastic sleeve.0.25 mm²
Flexible conductor section with toe cap, without plastic sleeve max.2.5 mm²
Flexible conductor section with tip, with min plastic sleeve.0.25 mm²
Flexible conductor section with ferrule, with plastic sleeve max.2.5 mm²
Conductor section AWG min.24
Conductor section AWG max.12
2 conductors with the same cross-section, rigid min.0.2 mm²
2 conductors with the same cross-section, rigid max.1 mm²
2 conductors with the same cross-section, flexible min.0.2 mm²
2 conductors with the same cross-section, flexible max.1.5 mm²
2 conductors with the same cross-section, flexible with HAE, without min plastic sleeve.0.25 mm²
2 conductors with the same cross-section, flexible with HAE without plastic sleeve max.1 mm²
2 conductors with the same cross-section, flexible with TWIN-AEH, with min plastic sleeve.0.5 mm²
2 conductors with the same cross-section, flexible with TWIN-HAE with plastic sleeve max.1.5 mm²
AWG according to UL/CUL min.30
AWG according to UL/CUL max.12

Standards & Specifications

Standard-compliant connectionEN-VDE
CUL

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSTime Span for Intended Use (EFUP): 50 years
You can find information about hazardous substances in the manufacturer's declaration under the "Downloads" tab

Classifications


ETIM for 5775315 Connectors (EC002638)
Feature Name Feature Value
Type of connection (EF000064) Other
Contact type (EF001587) Bus
Number of poles (EF001391) 4
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5.08 mm
Modular spacing connections (EF006827) 5.08 mm
Angle contact/conductor connection (EF007546) Other
Rated current In (EF008250) 12 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Type of electric connection (EF003961) Screw connection
Connectable cable type (EF006816) Tubular cable
Material of contact surface (EF004020) Tin
Material contact (EF007544) Copper
Material insulation body (EF007543) Polyamide (PA)
Housing material (EF001596) Other
Housing colour (EF000136) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
