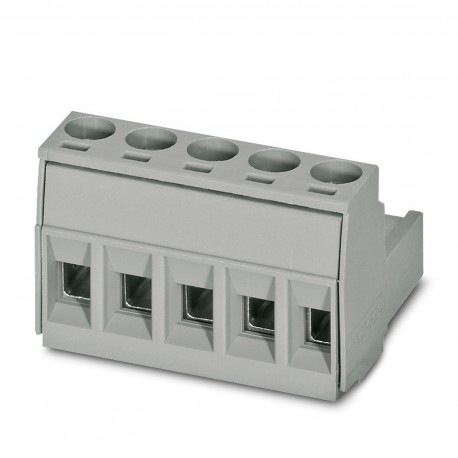

PHOENIX CONTACT BCP-508- 5 GY BD_P1-P.COM BCP-508- 5 GY BD P1-P.COM 5455989 PHOENIX CONTACT Part plug, nominal Current: 12 A, Pitch: 5,08 mm, the Tech.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BCP-508- 5 GY BD P1-P.COM 5455989 PHOENIX CONTACT Part plug, nominal Current: 12 A, Pitch: 5,08 mm, the Tech..

BCP-508- 5 GY BD_P1-P.COM

5455989

PHOENIX CONTACT

100 Pcs.

Part plug, nominal Current: 12 A, Pitch: 5,08 mm, the Technique of connection: Connection by screw with capsule-traction, Color: gray signs, contact Surface: Tin Printed circuit board connector, nominal cross-section: 2.5 mm2, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Sn, contact connection type: Female, number of potentials: 5, number of rows: 1, number of poles: 5, number of connections: 5, article family: BCP, pitch: 5.08 mm, connection type: Screw connection with traction capsule, screw clamping method: H1L Philipps-Recess with longitudinal groove, conductor connection direction/printed circuit board: 0 °, clamping hook: - Clamping hook, plug-in system: BASICLINE 2.5, locking: without, fixing type: without, packaging type: packed in box

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Data commercial

Key orderFive million four hundred fifty five thousand nine hundred eighty nine
Packing unit100 pcs
Key sellingAAYBAA -
Minimum order quantity100 pcs
EANFour trillion fifty five billion six hundred twenty six million sixty five thousand four hundred ninety six
Unit weight (excluding packaging)5,000 g
Tariff number tariffEighty five million three hundred sixty six thousand nine hundred ninety
Country of originCN (China)

Dimensions

Length [ l ]18,2 mm
Width [ w ]25.4 mm
Height [ h ]15 mm
Step5,08 mm
Average20,32 mm

Overview

Family of articlesBCP
Number of polesFive
Type of connectionConnection by screw with capsule-traction
Connection according to standardEN-VDE
Nominal current IN12 To
Nominal cross section2.5 mm2

Data connection

Core cross-section rigid min.0,2 mm2
Section of conductor rigid max.2.5 mm2
Section of flexible conductor, min.0,2 mm2
Section of flexible conductor max.2.5 mm2
Section of flexible conductor with toe cap, without plastic sleeve min.0.25 mm2
Section of flexible conductor with toe cap, without plastic sleeve max.2.5 mm2
Section of flexible conductor with toe, with plastic sleeve min.0.25 mm2
Section of flexible conductor with toe, with plastic sleeve max.2.5 mm2
Section of conductor AWG min.Twenty four
Section of conductor AWG max.Twelve
2 conductors with same cross section, rigid min.0,2 mm2
2 conductors with same cross section, rigid max.1 mm2
2 conductors with same cross section, flexible, min.0,2 mm2
2 conductors with same cross section, flexible max.1.5 mm2
2 conductors with same cross section, flexible with AEH without plastic sleeve min.0.25 mm2
2 conductors with same cross section, flexible with AEH without plastic sleeve max.1 mm2
2 conductors with same cross section, flexible with TWIN-AEH with plastic sleeve min.0.5 mm2
2 conductors with same cross section, flexible with TWIN-AEH with plastic sleeve max.1.5 mm2

Standards and specifications

Connection according to standardEN-VDE

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSSpace of time for the intended use (FEUP): 50 years
You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab
