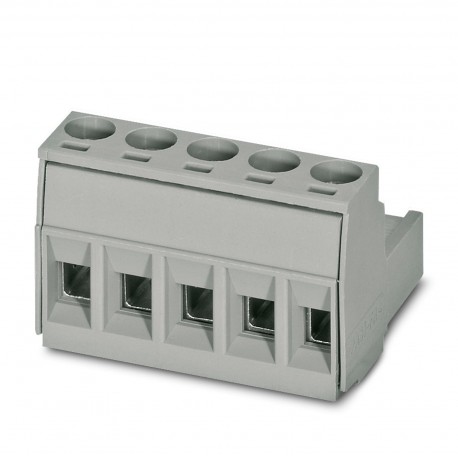

PHOENIX CONTACT BCP-508-3 GN BD:-,I8 BCP-508- 3 GN BD:-,I8 1088022 PHOENIX CONTACT Connector for printed circuit board, nominal current: 12 A, nu.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BCP-508- 3 GN BD:-,I8 1088022 PHOENIX CONTACT Connector for printed circuit board, nominal current: 12 A, nu..

BCP-508-3 GN BD:-,I8

1088022

PHOENIX CONTACT

2000 Pcs.

Connector for printed circuit board, nominal current: 12 A, number of poles: 3, pitch: 5,08 mm, type of Connection: Connection by screw with capsule-traction, color: whitish green, surface contacts: Tin Connector for printed circuit board, nominal section: 2.5 mm², color: off-white green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Female, number of potentials: 3, number of rows: 1, number of poles: 3, number of connections: 3, article family: BCP, pitch: 5.08 mm, connection type: Screw connection with traction capsule, screw clamping method: H1L Philipps-Recess with longitudinal groove, conductor connection direction/printed circuit board: 0 °, clamping hook: - Clamping hook, plug-in system: BASICLINE 2.5, locking: without, fixing type: without, packaging type: packed in box

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Item Properties
Product TypePrinted Circuit Board Connector
Product FamilyBCP
Product LineCOMBICON Connectors M
Number of poles3
Step5.08 mm
Number of connections3
Number of rows1
Number of potentials3
Data Maintenance Status
Article Review01
Electrical Properties
Nominal Current IN12 A
Nominal voltage UN320 V
Contact resistance2.1 mΩ
Sizing voltage (III/3)250 V
Dimensioning transient voltage (III/3)4 kV
Dimensioning voltage (III/2)320 V
Dimensioning Transient Voltage (III/2)4 kV
Nominal voltage (II/2)630 V
Dimensioning transient voltage (II/2)4 kV
Connection data
Connection technology
ConstructionStandard
Connector SystemBASICLINE 2.5
Nominal Section2.5 mm²
Contact Connection TypeFemale
Blockade
Locking systemwithout
Clamping flangewithout
Connecting Conductors
Connection typeScrew connection with traction capsule
Connection Direction Driver/PCB0 °
Rigid conductor section0.2 mm² ... 2.5 mm²
Flexible conductor section0.2 mm² ... 2.5 mm²
AWG Conductor Section24 ... 12
Flexible conductor section with toe cap, without plastic sleeve0.25 mm² ... 2.5 mm²
Flexible conductor section with toe cap, with plastic sleeve0.25 mm² ... 2.5 mm²
2 conductors with the same cross-section, rigid0.2 mm² ... 1 mm²
2 conductors with the same cross-section, flexible0.2 mm² ... 1.5 mm²
2 conductors of equal cross-section, flexible with toe cap, without plastic sleeve0.25 mm² ... 1 mm²
2 conductors with the same cross-section, flexible with TWIN toe cap with plastic sleeve0.5 mm² ... 1.5 mm²
Male gauge a x b / Diameter2.8 mm x 2.0 mm / 2.4 mm
Peel Length7 mm
Drive shape: screw headPhilipps-Recess with longitudinal groove (H1L)
Tightening torque0.4 Nm ... 0.5 Nm
Material Data
Material data - contact
ObservationWEEE/RoHS compliant, filament-free according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu Alloy
Surface CharacteristicsMalleable cast iron tinning
Metal surface of the terminal point (top layer)Tin (3 - 5 μm Sn)
Metal surface contact area (top layer)Tin (3 - 5 μm Sn)
Material data - housing
Color (Housing)off-white green (6019)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability class according to UL 94V0
Flammability number of GWFI incandescent filaments according to EN 60695-2-12850
Ignition temperature of incandescent filaments GWIT according to EN 60695-2-13775
Ball hardness test temperature according to EN 60695-10-2125 °C
Dimensions
Dimension Schemeedyvovzxrs.jpg
Step5.08 mm
Width [w]15.24 mm
Height [h]15 mm
Length [l]18.2 mm
Mechanical testing
Checking for damage to conductors and loosening
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
ResultApproved Test
Tensile Test
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
Conductor Section/Conductor Type/Tensile Force Nominal Value/Actual Value0.2 mm² / rigid / > 10 N
0.2 mm² / flexible / > 10 N
2.5 mm² / rigid / > 50 N
2.5 mm² / flexible / > 50 N
Forces when plugging in and unplugging
Test SpecificationDIN EN 60512-13-2:2006-11
ResultApproved Test
Number of cycles25
Plug-in force approx.8 N
Power when unplugging by pole approx.6 N
Torque check
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
Resistance of the signs
Test SpecificationDIN EN 60068-2-70:1996-07
ResultApproved Test
Polarization & Coding
Test SpecificationDIN EN 60512-13-5:2006-11
ResultApproved Test
Eye Exam
Test SpecificationDIN EN 60512-1-1:2003-01
ResultApproved Test
Dimensional Examination
Test SpecificationDIN EN 60512-1-2:2003-01
ResultApproved Test
Environmental and life-life conditions
Vibration test
Test SpecificationDIN EN 60068-2-6 (VDE 0468-2-6):2008-10
frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 150 Hz)
Test duration per axis2.5 h
Test DirectionsX, Y, and Z axes
Durability Test
Test SpecificationDIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12
Bearable shock voltage at sea level4.8 kV
Contact Resistance R12.1 mΩ
Contact Resistance R22.1 mΩ
Plug Cycles25
Insulation Resistance Adjacent Poles> 5 MΩ
Climate Essay
Test SpecificationDIN EN ISO 22479:2022-08
Corrosion fatigue0.2 dm3UNDER2in 300 dm3/40 °C/1 cycle
Thermal stress105 °C/168 h
Bearable AC voltage2.21 kV
Environmental conditions
Ambient Temperature (Service)-40 °C ... 105 °C (depending on the rating curve)
Ambient Temperature (Storage/Transport)-40 °C ... 70 °C
Relative humidity of the air (storage/transport)30 % ... 70 %
Ambient Temperature (Mounting)-5 °C ... 100 °C
Electrical Testing
Thermal Test Test Group C
Test SpecificationDIN EN 60512-5-1:2003-01
Number of poles tested24
Insulation resistance
Test SpecificationDIN EN 60512-3-1:2003-01
Insulation Resistance Adjacent Poles> 5 MΩ
Creepage Lines & Air Isolation Distances
Test SpecificationDIN EN 60664-1 (VDE 0110-1):2008-01
Insulating material groupI
Resistance to leakage currents (DIN EN 60112 (VDE 0303-11))CTI 600
Sizing Insulation Voltage (III/3)250 V
Nominal transient voltage (III/3)4 kV
minimum value of air insulation distance - non-homogeneous field (III/3)3 mm
Minimum creepage line value (III/3)3.2 mm
Sizing Insulation Voltage (III/2)320 V
Nominal transient voltage (III/2)4 kV
Minimum Value of Air Insulation Distance - Non-Homogeneous Field (III/2)3 mm
Minimum creepage line value (III/2)3 mm
Sizing Insulation Voltage (II/2)630 V
Nominal transient voltage (II/2)4 kV
Minimum Value of Air Insulation Distance - Non-Homogeneous Field (II/2)3 mm
Minimum creepage line value (II/2)3.2 mm
Packaging Information
Type of packagingBoxed Packaging

ETIM for 1088022 Connectors (EC002638)
Feature Name Feature Value
Type of connection (EF000064) Other
Contact type (EF001587) Bus
Number of poles (EF001391) 3
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5.08 mm
Modular spacing connections (EF006827) 5.08 mm
Angle contact/conductor connection (EF007546) Other
Rated current In (EF008250) 12 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Type of electric connection (EF003961) Screw connection
Connectable cable type (EF006816) Tubular cable
Material of contact surface (EF004020) Tin
Material contact (EF007544) Copper
Material insulation body (EF007543) Polyamide (PA)
Housing material (EF001596) Other
Housing colour (EF000136) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
