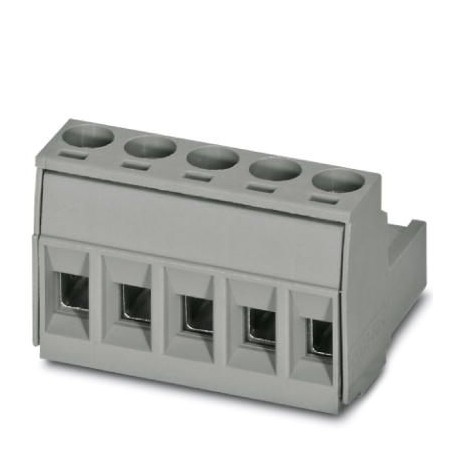

PHOENIX CONTACT BCP-508- 3 BK BDWH:-L(+)Q BCP-508- 3 BK BDWH:-L(+)Q 5455455 PHOENIX CONTACT Part plug, nominal Current: 12 A, Technique of connection:.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BCP-508- 3 BK BDWH:-L(+)Q 5455455 PHOENIX CONTACT Part plug, nominal Current: 12 A, Technique of connection:..

BCP-508- 3 BK BDWH:-L(+)Q

5455455

PHOENIX CONTACT

100 Pcs.

Part plug, nominal Current: 12 A, Technique of connection: Connection by screw with capsule-traction, Color: black, contact Surface: Tin

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Commercial data

The code for the orderFive million four hundred fifty five thousand four hundred fifty five
Pieces/pack.100 PCS
Sales keyAAYBAA -
The amount of minimum order100 PCS
GTINFour trillion forty six billion three hundred fifty six million nine hundred eighty three thousand four hundred thirty three
Weight per piece (package included)4,500 g
Number customs tariffEighty five million three hundred sixty six thousand nine hundred ninety

Size

Length [ l ]18.2 mm
Width [ w ]15,24 mm
Height [ h ]15 mm
Step5.08 mm
Measure10.16 mm

General

Family articleBCP
N. of polesThree
LinkScrew connection with cage
Attack in accordance withEN-VDE
Rated current IN12 To
Nominal section2.5 mm2

Data link

Conductor cross section, rigid min.0.2 mm2
Conductor cross section, rigid max.2.5 mm2
Conductor cross section flexible min.0.2 mm2
Conductor cross section flexible max.2.5 mm2
Conductor cross section flexible with crimp connector without collar plastic min.0.25 mm2
Conductor cross section flexible with crimp connector without collar plastic max.2.5 mm2
Conductor cross section flexible with aeh with collar plastic min.0.25 mm2
Conductor cross section flexible with aeh with collar plastic max.2.5 mm2
Cross section conductor AWG min.Twenty four
Cross section conductor AWG max.Twelve
2 conductors with the same diameter, rigid min.0.2 mm2
2 conductors with the same diameter, rigid max.1 mm2
2 conductors with the same diameter, flexible, min.0.2 mm2
2 conductors with the same diameter, flexible, max.1.5 mm2
2 conductors with the same diameter, flexible with AEH without collar plastic min.0.25 mm2
2 conductors with the same diameter, flexible with AEH without collar plastic max.1 mm2
2 conductors with the same diameter, flexible with TWIN-AEH with collar plastic min.0.5 mm2
2 conductors with the same diameter, flexible with TWIN-AEH with collar plastic max.1.5 mm2

Regulations and requirements

Attack in accordance withEN-VDE

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSPeriod of use conforms to the target without damage to the environment (EFUP): 50 years
The information on hazardous substances found in the declaration of the manufacturer under "Downlaods"
