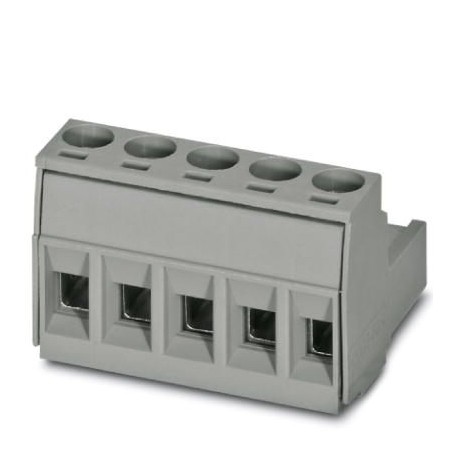

PHOENIX CONTACT BCP-508- 2 BK BDWH:1-2 BCP-508- 2 BK BDWH:1-2 5454359 PHOENIX CONTACT Part plug, nominal Current: 12 A, Technique of connection: Co.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BCP-508- 2 BK BDWH:1-2 5454359 PHOENIX CONTACT Part plug, nominal Current: 12 A, Technique of connection: Co..

BCP-508- 2 BK BDWH:1-2

5454359

PHOENIX CONTACT

100 Pcs.

Part plug, nominal Current: 12 A, Technique of connection: Connection by screw with capsule-traction, Color: black, contact Surface: Tin

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Data commercial

Key orderFive million four hundred fifty four thousand three hundred fifty nine
Packing unit100 pcs
Key sellingAAYBAA -
Minimum order quantity500 pcs
EANFour trillion forty six billion three hundred fifty six million nine hundred ninety nine thousand seven hundred eighty six
Unit weight (excluding packaging)3,000 g
Tariff number tariffEighty five million three hundred sixty six thousand nine hundred ninety
Country of originCN (China)

Dimensions

Length [ l ]18,2 mm
Width [ w ]10,16 mm
Height [ h ]15 mm
Step5,08 mm
Average5,08 mm

Overview

Family of articlesBCP
Number of polesTwo
Type of connectionConnection by screw with capsule-traction
Connection according to standardEN-VDE
Nominal current IN12 To
Nominal cross section2.5 mm2

Data connection

Core cross-section rigid min.0,2 mm2
Section of conductor rigid max.2.5 mm2
Section of flexible conductor, min.0,2 mm2
Section of flexible conductor max.2.5 mm2
Section of flexible conductor with toe cap, without plastic sleeve min.0.25 mm2
Section of flexible conductor with toe cap, without plastic sleeve max.2.5 mm2
Section of flexible conductor with toe, with plastic sleeve min.0.25 mm2
Section of flexible conductor with toe, with plastic sleeve max.2.5 mm2
Section of conductor AWG min.Twenty four
Section of conductor AWG max.Twelve
2 conductors with same cross section, rigid min.0,2 mm2
2 conductors with same cross section, rigid max.1 mm2
2 conductors with same cross section, flexible, min.0,2 mm2
2 conductors with same cross section, flexible max.1.5 mm2
2 conductors with same cross section, flexible with AEH without plastic sleeve min.0.25 mm2
2 conductors with same cross section, flexible with AEH without plastic sleeve max.1 mm2
2 conductors with same cross section, flexible with TWIN-AEH with plastic sleeve min.0.5 mm2
2 conductors with same cross section, flexible with TWIN-AEH with plastic sleeve max.1.5 mm2

Standards and specifications

Connection according to standardEN-VDE

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSSpace of time for the intended use (FEUP): 50 years
You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab
