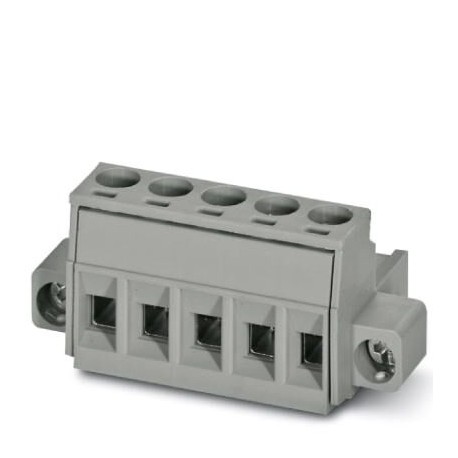

PHOENIX CONTACT BCP-500F-2 GN BCP-500F- 2 GN 5448446 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BCP-500F- 2 GN 5448446 PHOENIX CONTACT Printed-circuit board connector

BCP-500F-2 GN

5448446

PHOENIX CONTACT

100 Pcs.

Printed-circuit board connector Connector for printed circuit board, nominal cross-section: 2.5 mm², color: off-white, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Female, number of potentials: 2, number of rows: 1, number of poles: 2, number of connections: 2, article family: BCP-F, pitch: 5 mm, connection type: Screw connection with traction capsule, screw clamping form: L Longitudinal slot, conductor connection direction/printed circuit board: 0 °, clamping hook: - without clamping hook, plug-in system: BASICLINE 2.5, locking: Screw locking, fixing type: Air clamping (screw), packaging type: boxed PCB connector, nominal current: 12 A, rated voltage (III/2): 320 V, nominal cross section: 2.5 mm², number of positions: 2, pitch: 5 mm, connection method: Screw connection with tension sleeve, color: pastel green, contact surface: Tin

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey5448446
Packing unit1 pc
Minimum order quantity100 pc
GTIN4046356837880
Weight per Piece (excluding packing)4.400 g
Custom tariff number85366990
Country of originCN (China)

Drawings

Diagram

Diagram

Dimensional drawing

Dimensional drawing

Back to top

Dimensions

Length [ l ]18.2 mm
Width [ w ]19.94 mm
Height [ h ]15 mm
Pitch5 mm
Dimension a5 mm
Back to top

General

Range of articlesBCP-F
Number of positions2
Connection methodScrew connection with tension sleeve
Insulating material groupI
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)320 V
Rated voltage (II/2)630 V
Nominal current IN12 A
Nominal cross section2.5 mm²
Maximum load current12 A (with a 2.5 mm² conductor cross section)
Insulating materialPA
Flammability rating according to UL 94V0
Stripping length7 mm
Screw threadM3
Tightening torque, min0.4 Nm
Tightening torque max0.5 Nm
Back to top

Connection data

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.2.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
2 conductors with same cross section, solid min.0.2 mm²
2 conductors with same cross section, solid max.1 mm²
2 conductors with same cross section, stranded min.0.2 mm²
2 conductors with same cross section, stranded max.1.5 mm²
Two conductors with the same cross section stranded, with ferrule and without plastic sleeve, minimum0.25 mm²
Two conductors with the same cross section stranded, with ferrule and without plastic sleeve, maximum1 mm²
Two conductors with the same cross section, flexible, with TWIN ferrules, with plastic sleeve, minimum0.5 mm²
Two conductors with the same cross section, flexible, with TWIN ferrules, with plastic sleeve, maximum1.5 mm²
Back to top

Standards and Regulations

Connection in acc. with standardCUL
Flammability rating according to UL 94V0
Back to top

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50 years
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Back to top

Classifications

eCl@ss

eCl@ss 4.027260700
eCl@ss 4.127260700
eCl@ss 5.027260700
eCl@ss 5.127260700
eCl@ss 6.027260700
eCl@ss 7.027440309
eCl@ss 8.027440309
eCl@ss 9.027440309
Back to top

ETIM

ETIM 3.0EC001121
ETIM 4.0EC002638
ETIM 5.0EC002638
ETIM 6.0EC002638
ETIM 7.0EC002638
Back to top

UNSPSC

UNSPSC 6.0130211801
UNSPSC 7.090139121432
UNSPSC 1139121432
UNSPSC 12.0139121409
UNSPSC 13.239121409
UNSPSC 18.039121409
UNSPSC 19.039121409
UNSPSC 20.039121409
UNSPSC 21.039121409
Back to top

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
