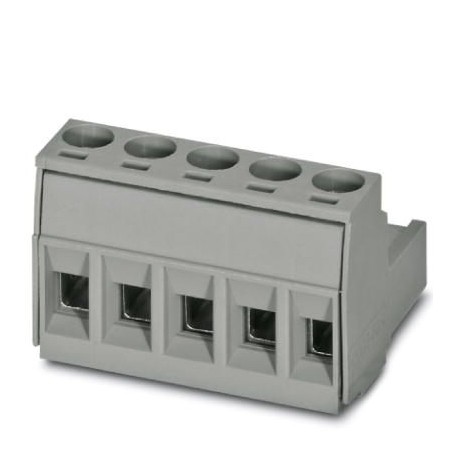

PHOENIX CONTACT BCP-500-3 GYCP2 BD:1/+ SO BCP-500- 3 GYCP2 BD:1/+ SO 5430141 PHOENIX CONTACT PCB connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BCP-500- 3 GYCP2 BD:1/+ SO 5430141 PHOENIX CONTACT PCB connector

BCP-500-3 GYCP2 BD:1/+ SO

5430141

PHOENIX CONTACT

1 Pcs.


Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
PCB connector

Connector for printed circuit board, nominal section: 2.5 mm², color: signal gray, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Female, number of potentials: 3, number of rows: 1, number of poles: 3, number of connections: 3, article family: BCP, pitch: 5 mm, connection type: Screw connection with traction capsule, screw clamping form: L Longitudinal slot, conductor connection direction/printed circuit board: 0 °, clamping hook: - Clamping hook, plug-in system: BASICLINE 2.5, locking: without, fixing type: without, packaging type: packed in box

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
