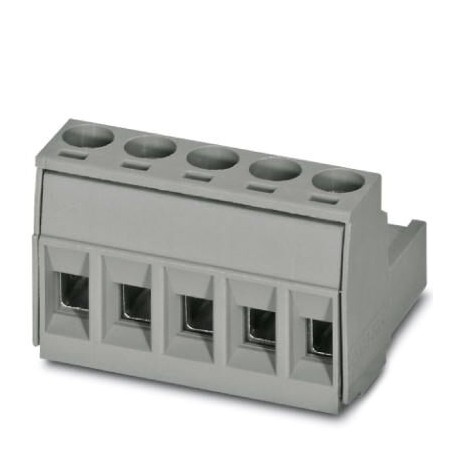

PHOENIX CONTACT BCP-500-3 GN BDWH:FC-2SO BCP-500- 3 GN BDWH:FC-2SO 5430323 PHOENIX CONTACT Printed-circuit board connector BCP-500- 3 GN BDWH:FC-2SO .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BCP-500- 3 GN BDWH:FC-2SO 5430323 PHOENIX CONTACT Printed-circuit board connector BCP-500- 3 GN BDWH:FC-2SO ..

BCP-500-3 GN BDWH:FC-2SO

5430323

PHOENIX CONTACT

100 Pcs.

Printed-circuit board connector - BCP-500- 3 GN BDWH:FC-2SO - 5430323 Connector for printed circuit board, nominal section: 2.5 mm², colour: whitish green, rated current: 12 A, sizing voltage (III/2): 320 V, surface contacts: Tin, contact type: Connecting female, Number of potentials: 3, Number of rows: 1, Number of poles per row: 3, number of connections: 3, article family: BCP, step: 5 mm, connection type: Screw connection with traction capsule, connection direction conductor/printed circuit board: 0 °, Stecksystem: BASICLINE 2.5, Locking: without, type of packaging: boxed packaging

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

PCB connector, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 3, pitch: 5 mm, connection method: Screw connection with tension sleeve, color: pastel green, contact surface: Tin

Key Commercial Data

Orderkey5430323
Packing unit100 pc
Minimum order quantity100 pc
NoteMade to Order (non-returnable)
GTIN4055626343402
Weight per Piece (excluding packing)4.850 g
Custom tariff number85366990
Country of originCN (China)

Dimensions

Pitch5 mm
Dimension a10 mm

General

Range of articlesBCP
Number of positions3
Connection methodScrew connection with tension sleeve
Insulating material groupI
Rated voltage (III/2)320 V
Nominal current IN12 A
Nominal cross section2.5 mm²
Flammability rating according to UL 94V0
Screw threadM3

Standards and Regulations

Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHC
Lead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 5430323 Connectors (EC002638)
Feature Name Feature Value
Type of connection (EF000064) Other
Contact type (EF001587) Bus
Number of poles (EF001391) 3
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5 mm
Modular spacing connections (EF006827) 5 mm
Angle contact/conductor connection (EF007546) Other
Rated current In (EF008250) 12 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Type of electric connection (EF003961) Screw connection
Connectable cable type (EF006816) Tubular cable
Material of contact surface (EF004020) Tin
Material contact (EF007544) Copper
Material insulation body (EF007543) Polyamide (PA)
Housing material (EF001596) Other
Housing colour (EF000136) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
