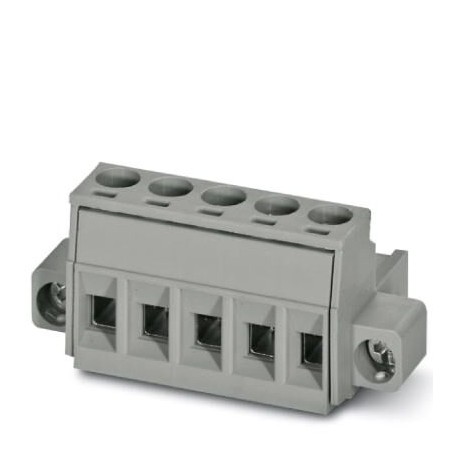

PHOENIX CONTACT BCP-500-2 GN BDWH:L2SOVPE250 BCP-500-2 GN BDWH:L2SOVPE250 5453279 PHOENIX CONTACT Part plug,nominal Current: 12 A,rated Voltage (III/2): .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BCP-500-2 GN BDWH:L2SOVPE250 5453279 PHOENIX CONTACT Part plug,nominal Current: 12 A,rated Voltage (III/2): ..

BCP-500-2 GN BDWH:L2SOVPE250

5453279

PHOENIX CONTACT

250 Pcs.

Part plug,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º poles: 2,Pitch: 5 mm,Technique of connection: Connection by screw with capsule-traction,contact Surface: Tin Connector for printed circuit board, nominal cross-section: 2.5 mm², color: off-white green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Female, number of potentials: 2, number of rows: 1, number of poles: 2, number of connections: 2, article family: BCP, pitch: 5 mm, connection type: Screw connection with traction capsule, screw clamping form: L Longitudinal slot, conductor connection direction/printed circuit board: 0 °, clamping hook: - Clamping hook, plug-in system: BASICLINE 2.5, locking: without, fixing type: without, packaging type: packed in box Connector for printed circuit board, rated current: 12 A, dimensioning voltage (III/2): 320 V, nominal cross-section: 2.5 mm², number of poles: 2, pitch: 5 mm, connection type: Screw connection with traction capsule, color: off-white green, contact surface: Tin

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Data commercial

Key orderFive million four hundred fifty three thousand two hundred seventy nine
Packing unit250 pcs
Key sellingAAYBAA -
Minimum order quantity250 pcs
EANFour trillion forty six billion three hundred fifty six million eight hundred ninety six thousand one hundred eight
Unit weight (excluding packaging)3,160 g
Tariff number tariffEighty five million three hundred sixty six thousand nine hundred ninety
Country of originCN (China)

Drawings

Diagrama

Diagram

Esquema de dimensiones

Outline dimensions

Back to top

Dimensions

Length [ l ]18,2 mm
Width [ w ]10 mm
Height [ h ]15 mm
Step5 mm
Average5 mm
Back to top

Overview

Family of articlesBCP
Number of polesTwo
Type of connectionConnection by screw with capsule-traction
Group insulating materialI
Transient voltage design (III/3)4 kV
Transient voltage design (III/2)4 kV
Transient voltage design (II/2)4 kV
Tension and sizing (III/3)250 V
Tension and sizing (III/2)320 V
Tension and sizing (II/2)630 V
Connection according to standardEN-VDE
Nominal current IN12 To
Nominal cross section2.5 mm2
IsolationPA
Class of flammability according to UL 94V0
Length desaislar7 mm
Screw threadM3
Tightening torque min.0.4 Nm
Tightening torque max.0.5 Nm
Back to top

Data connection

Core cross-section rigid min.0,2 mm2
Section of conductor rigid max.2.5 mm2
Section of flexible conductor, min.0,2 mm2
Section of flexible conductor max.2.5 mm2
Section of flexible conductor with toe cap, without plastic sleeve min.0.25 mm2
Section of flexible conductor with toe cap, without plastic sleeve max.2.5 mm2
Section of flexible conductor with toe, with plastic sleeve min.0.25 mm2
Section of flexible conductor with toe, with plastic sleeve max.2.5 mm2
Section of conductor AWG min.Twenty four
Section of conductor AWG max.Twelve
2 conductors with same cross section, rigid min.0,2 mm2
2 conductors with same cross section, rigid max.1 mm2
2 conductors with same cross section, flexible, min.0,2 mm2
2 conductors with same cross section, flexible max.1.5 mm2
2 conductors with same cross section flexible with toe cap, without plastic sleeve min.0.25 mm2
2 conductors with same cross section flexible with toe cap, without plastic sleeve max.1 mm2
2 conductors with same cross section flexible with toe cap TWIN with plastic sleeve min.0.5 mm2
2 conductors with same cross section flexible with toe cap TWIN with plastic sleeve max.1.5 mm2
Back to top

Standards and specifications

Connection according to standardEN-VDE
CUL
Class of flammability according to UL 94V0
Back to top

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSSpace of time for the intended use (FEUP): 50 years
You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab
Back to top

Ratings

eCl@ss

eCl@ss 4.0Twenty seven million two hundred sixty thousand seven hundred
eCl@ss 4.1Twenty seven million two hundred sixty thousand seven hundred
eCl@ss 5.0Twenty seven million two hundred sixty thousand seven hundred
eCl@ss 5.1Twenty seven million two hundred sixty thousand seven hundred
eCl@ss 6.0Twenty seven million two hundred sixty thousand seven hundred
eCl@ss 7.0Twenty seven million four hundred forty thousand three hundred nine
eCl@ss 8.0Twenty seven million four hundred forty thousand three hundred nine
eCl@ss 9.0Twenty seven million four hundred forty thousand three hundred nine
Back to top

ETIM

ETIM 4.0EC002637
ETIM 5.0EC002638
ETIM 6.0EC002638
ETIM 7.0EC002638
Back to top

UNSPSC

UNSPSC 13.2Thirty nine million one hundred twenty one thousand four hundred nine
UNSPSC 18.0Thirty nine million one hundred twenty one thousand four hundred nine
UNSPSC 19.0Thirty nine million one hundred twenty one thousand four hundred nine
UNSPSC 20.0Thirty nine million one hundred twenty one thousand four hundred nine
UNSPSC 21.0Thirty nine million one hundred twenty one thousand four hundred nine
Back to top

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
