View larger
Images are for illustrative purposes only. Please refer to data sheet for details

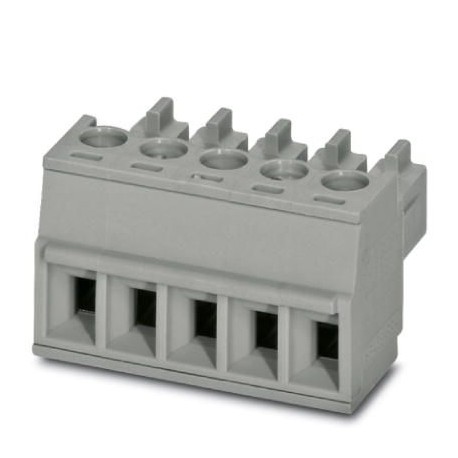

BCP-381-20 GY BD:1-20 5453237 PHOENIX CONTACT Terminal for p. c. i.
BCP-381-20 GY BD:1-20
5453237
PHOENIX CONTACT
100 Pcs.
Terminal for p. c. i.
Connector for printed circuit board, nominal section: 1.5 mm², color: gray signals, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Female, number of potentials: 20, number of rows: 1, number of poles: 20, number of connections: 20, article family: BCP, pitch: 3.81 mm, connection type: Screw connection with traction capsule, screw clamping form: L Longitudinal slot, conductor/printed circuit board connection direction: 0 °, plug-in system: BASICLINE 1.5, lock: without, fixing type: without, packaging type: boxed
Cables > Cable connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Data commercial
| Key order | Five million four hundred fifty three thousand two hundred thirty seven |
|---|---|
| Packing unit | 100 pcs |
| Key selling | AAYCAA - |
| Minimum order quantity | 100 pcs |
| EAN | Four trillion fifty five billion six hundred twenty six million one hundred twenty five thousand thirty nine |
| Unit weight (excluding packaging) | 14,780 g |
| Tariff number tariff | Eighty five million three hundred sixty six thousand nine hundred ninety |
| Country of origin | CN (China) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Space of time for the intended use (FEUP): 50 years |
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
Ratings
eCl@ss 8.0Twenty seven million four hundred forty thousand three hundred nineeCl@ss 9.0Twenty seven million four hundred forty thousand three hundred nine
| Feature Name | Feature Value |
|---|---|
| Type of connection (EF000064) | Other |
| Contact type (EF001587) | Bus |
| Number of poles (EF001391) | 20 |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 3.81 mm |
| Modular spacing connections (EF006827) | 3.81 mm |
| Angle contact/conductor connection (EF007546) | Other |
| Rated current In (EF008250) | 8 A |
| Rated voltage (EF000228) | 160 V |
| Rated surge voltage (EF002993) | 2.5 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.2 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.25 mm² |
| Connectable conductor cross section solid-core (EF007337) | 0.2 mm² |
| Type of electric connection (EF003961) | Screw connection |
| Connectable cable type (EF006816) | Tubular cable |
| Material of contact surface (EF004020) | Tin |
| Material contact (EF007544) | Copper |
| Material insulation body (EF007543) | Polyamide (PA) |
| Housing material (EF001596) | Other |
| Housing colour (EF000136) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
