PHOENIX CONTACT BCH-508VF-6 GN BCH-508VF- 6 GN 5447201 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

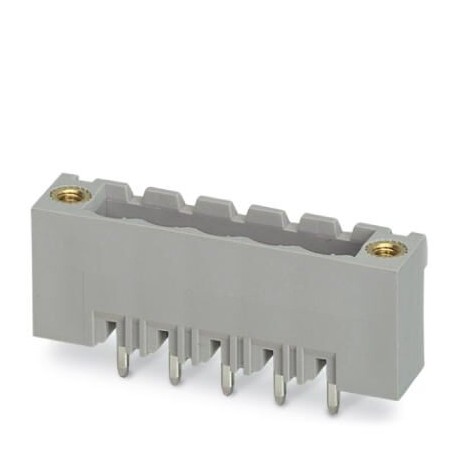

BCH-508VF- 6 GN 5447201 PHOENIX CONTACT Printed-circuit board connector

BCH-508VF-6 GN

5447201

PHOENIX CONTACT

100 Pcs.

Printed-circuit board connector Printed circuit board base housing, nominal section: 2.5 mm², color: whitish green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 6, number of rows: 1, number of poles: 6, number of connections: 6, article family: BCH-VF, pitch: 5.08 mm, mounting: Wave soldering, Pin arrangement: Linear pin arrangement, pin length [P]: 3.9 mm, number of solder pins per potential: 1, plug-in system: BASICLINE 2.5, Plug-in face orientation: Standard, lock: Screw lock, fastening type: Air clamping (thread), packaging type: boxed PCB headers, nominal current: 12 A, rated voltage (III/2): 320 V, nominal cross section: 2.5 mm², number of positions: 6, pitch: 5.08 mm, color: pastel green, contact surface: Tin, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.9 mm

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey5447201
Packing unit1 pc
Minimum order quantity100 pc
GTIN4046356837149
Weight per Piece (excluding packing)3.400 g
Custom tariff number85366930
Country of originCN (China)

Drawings

Drilling diagram

Drilling diagram

Dimensional drawing

Dimensional drawing

Back to top

Dimensions

Length [ l ]8.6 mm
Width40.64 mm
Pitch5.08 mm
Dimension a25.4 mm
Width [ w ]40.64 mm
Height [ h ]15.9 mm
Height12 mm
Length of the solder pin3.9 mm
Pin dimensions1 x 1 mm
Length8.6 mm
Back to top

General

Range of articlesBCH-VF
Insulating material groupI
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)320 V
Rated voltage (II/2)400 V
Connection in acc. with standardEN-VDE
Nominal current IN12 A
Maximum load current12 A
Insulating materialPA
Flammability rating according to UL 94V0
Colorpastel green
Number of positions6
Back to top

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0
Back to top

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50 years
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Back to top

Classifications

eCl@ss

eCl@ss 4.027260700
eCl@ss 4.127260700
eCl@ss 5.027260700
eCl@ss 5.127260700
eCl@ss 6.027260700
eCl@ss 7.027440402
eCl@ss 8.027440402
eCl@ss 9.027440402
Back to top

ETIM

ETIM 3.0EC001121
ETIM 4.0EC002637
ETIM 5.0EC002637
ETIM 6.0EC002637
ETIM 7.0EC002637
Back to top

UNSPSC

UNSPSC 6.0130211801
UNSPSC 7.090139121432
UNSPSC 1139121432
UNSPSC 12.0139121409
UNSPSC 13.239121409
UNSPSC 18.039121409
UNSPSC 19.039121409
UNSPSC 20.039121409
UNSPSC 21.039121409
Back to top

Product Datasheet
