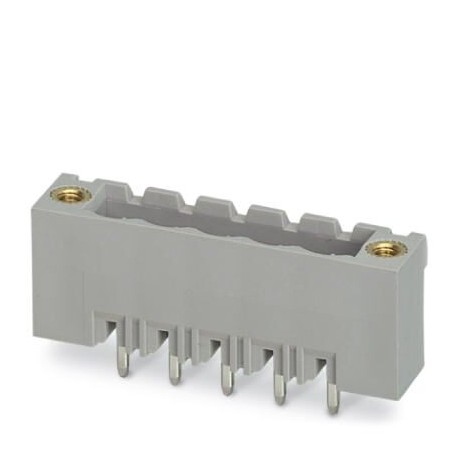

PHOENIX CONTACT BCH-508VF-17 GN BCH-508VF-17 GN 5447311 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BCH-508VF-17 GN 5447311 PHOENIX CONTACT Printed-circuit board connector

BCH-508VF-17 GN

5447311

PHOENIX CONTACT

100 Pcs.

Printed-circuit board connector Printed circuit board base housing, nominal section: 2.5 mm², color: whitish green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 17, number of rows: 1, number of poles: 17, number of connections: 17, article family: BCH-VF, pitch: 5.08 mm, mounting: Wave soldering, Pin arrangement: Linear pin arrangement, pin length [P]: 3.9 mm, number of solder pins per potential: 1, plug-in system: BASICLINE 2.5, Plug-in face orientation: Standard, lock: Screw lock, fastening type: Air clamping (thread), packaging type: boxed PCB headers, nominal current: 12 A, rated voltage (III/2): 320 V, nominal cross section: 2.5 mm², number of positions: 17, pitch: 5.08 mm, color: pastel green, contact surface: Tin, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.9 mm

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey5447311
Packing unit1 pc
Minimum order quantity100 pc
GTIN4046356837255
Weight per Piece (excluding packing)0.000 g
Custom tariff number85366930
Country of originCN (China)

Drawings

Drilling diagram

Drilling diagram

Dimensional drawing

Dimensional drawing

Back to top

Dimensions

Length [ l ]8.6 mm
Width96.52 mm
Pitch5.08 mm
Dimension a81.28 mm
Width [ w ]96.52 mm
Height [ h ]15.9 mm
Height12 mm
Length of the solder pin3.9 mm
Pin dimensions1 x 1 mm
Length8.6 mm
Back to top

General

Range of articlesBCH-VF
Insulating material groupI
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)320 V
Rated voltage (II/2)400 V
Connection in acc. with standardEN-VDE
Nominal current IN12 A
Maximum load current12 A
Insulating materialPA
Flammability rating according to UL 94V0
Colorpastel green
Number of positions17
Back to top

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0
Back to top

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50 years
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Back to top

Classifications

eCl@ss

eCl@ss 4.027260700
eCl@ss 4.127260700
eCl@ss 5.027260700
eCl@ss 5.127260700
eCl@ss 6.027260700
eCl@ss 7.027440402
eCl@ss 8.027440402
eCl@ss 9.027440402
Back to top

ETIM

ETIM 3.0EC001121
ETIM 4.0EC002637
ETIM 5.0EC002637
ETIM 6.0EC002637
ETIM 7.0EC002637
Back to top

UNSPSC

UNSPSC 6.0130211801
UNSPSC 7.090139121432
UNSPSC 1139121432
UNSPSC 12.0139121409
UNSPSC 13.239121409
UNSPSC 18.039121409
UNSPSC 19.039121409
UNSPSC 20.039121409
UNSPSC 21.039121409
Back to top

ETIM for 5447311 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 17
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5.08 mm
Modular spacing connections (EF006827) 5.08 mm
Rated current In (EF008250) 12 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.4 mm
Length pin (EF006825) 3.9 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
