PHOENIX CONTACT BCH-508HS-19 BK BCH-508HS-19 BK 5452086 PHOENIX CONTACT Housing base,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

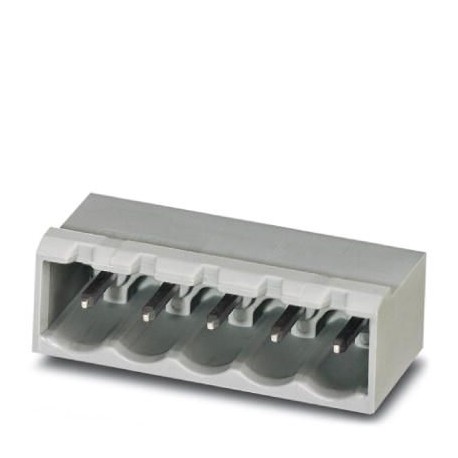

BCH-508HS-19 BK 5452086 PHOENIX CONTACT Housing base,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º..

BCH-508HS-19 BK

5452086

PHOENIX CONTACT

100 Pcs.

Housing base,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º poles: 19,Pitch: 5,08 mm,Color: black,contact Surface: Tin,Assembly: wave Soldering Printed circuit board base housing, nominal section: 2.5 mm², color: black, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 19, number of rows: 1, number of poles: 19, number of connections: 19, family of articles: BCH-HS, pitch: 5.08 mm, mounting: Wave soldering, Pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: BASICLINE 2.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Commercial data

Order key5452086
Packaging unit100 pcs
Sell keyAAYBFA -
Minimum Order Quantity100 pcs
Ean4046356854955
Weight per unit (excluding packaging)7,470 g
Tariff rate number85366990
Country of originCN (China)

Dimensions

Length [ l ]12 mm
Width98.52 mm
Step5.08 mm
Medium to91.44 mm
Width [ w ]98.52 mm
Height [ h ]12.07 mm
Construction height8.57 mm
Weld pin length3.5 mm
Temple Dimensions1 x 1 mm
Longitude12 mm

General

Article FamilyBCH-HS
Insulating material groupI
Dimensioning transient voltage (III/3)4 kV
Dimensioning Transient Voltage (III/2)4 kV
Dimensioning transient voltage (II/2)4 kV
Sizing voltage (III/3)250 V
Dimensioning voltage (III/2)320 V
Sizing voltage (II/2)400 V
Standard-compliant connectionEN-VDE
Nominal Current IN12 A
Maximum Charging Current12 A
IsolationPA
Combustibility class according to UL 94V0
Colourblack
Number of poles19

Standards & Specifications

Standard-compliant connectionEN-VDE
CUL
Combustibility class according to UL 94V0

Environmental Product Compliance

China RoHSTime slot for intended use: unlimited = EFUP-e
No hazardous substances above thresholds

Classifications


ETIM for 5452086 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 19
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5.08 mm
Modular spacing connections (EF006827) 5.08 mm
Rated current In (EF008250) 12 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.4 mm
Length pin (EF006825) 3.23 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)
