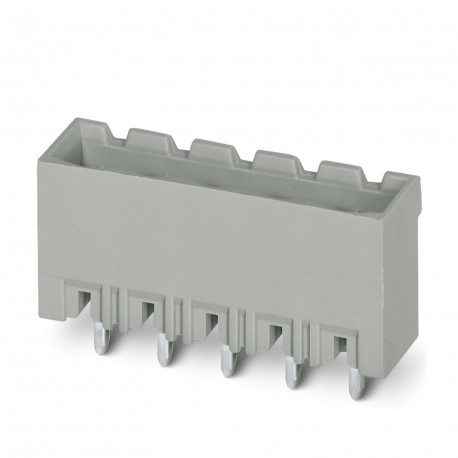

PHOENIX CONTACT BCH-500VS-4 GN BCH-500VS- 4 GN 5446105 PHOENIX CONTACT Housing base,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BCH-500VS- 4 GN 5446105 PHOENIX CONTACT Housing base,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º..

BCH-500VS-4 GN

5446105

PHOENIX CONTACT

100 Pcs.

Housing base,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º poles: 4,Pitch: 5 mm,Color: whitish green,contact Surface: Tin,Assembly: wave Soldering Printed circuit board base housing, nominal section: 2.5 mm², color: whitish green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 4, number of rows: 1, number of poles: 4, number of connections: 4, family of articles: BCH-VS, pitch: 5 mm, mounting: Wave soldering, Pin arrangement: Linear pin arrangement, pin length [P]: 3.9 mm, number of solder pins per potential: 1, plug-in system: BASICLINE 2.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed PCB base strip, nominal cross-section: 2.5 mm2, color: white-green, rated current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact type: pin, number of potentials: 4, number of rows: 1, number of poles: 4, number of connectors: 4, article family: BCH-VS, pitch: 5 mm, mounting: wave soldering, pin layout: linear pinning, pin length [P]: 3.9 mm, number of solder pins per potential: 1, connector system: BASICLINE 2.5, mating face orientation: Standard, Locking: without, Mounting type: without, Packaging type: packed in a carton

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Product TypePCB Floor Strip
Product familyBCH-VS
Product LineCOMBICON Connectors M
DesignStandard
Number of poles4
Grid dimension5 mm
Number of ports4
Number of rows1
Number of potentials4
Mounting Flangewithout
Pin layoutLinear Pinning
Number of solder pins per potential1
Data maintenance status
Article revision01
Nominal current IN12 A
Rated voltage UN320 V
Contact resistance3.7 mΩ
Rated voltage (III/3)250 V
Rated Surge Voltage (III/3)4 kV
Rated voltage (III/2)320 V
Rated Surge Voltage (III/2)4 kV
Rated voltage (II/2)400 V
Rated Surge Voltage (II/2)4 kV
Mounting typeWave Soldering
Pin layoutLinear Pinning
Material information - Contact
NoteWEEE/RoHS compliant, whisker-free according to IEC 60068-2-82/JEDEC JESD 201
Material ContactCu alloy
Surface finishElectroplated
Metal Surface Contact Area (Top Layer)Tin (4 - 8 μm Sn)
Metal Surface Contact Area (Interlayer)Nickel (1.5 - 4 μm Ni)
Metal Surface Soldering Area (Top Layer)Tin (4 - 8 μm Sn)
Metal Surface Soldering Area (Interlayer)Nickel (1.5 - 4 μm Ni)
Material specifications - Housing
Color (Housing)White-green (6019)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability class according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature of the ball pressure test according to EN 60695-10-2125 °C
Note on operationCOMBICON connectors are connectors without switching capacity (COC) in accordance with DIN EN 61984. When used as intended, they must not be plugged in or disconnected in a live or under load.
Dimensional drawing
Grid dimension5 mm
Width [w]22 mm
Height [h]15.9 mm
Length [l]8.6 mm
Overall height12 mm
Solder pin length [P]3.9 mm
Pin Dimensions1 x 1 mm
PCB Design
Drill Hole Diameter1.4 mm
Visual inspection
Test SpecificationDIN EN 60512-1-1:2003-01
ResultExam passed
Dimensional inspection
Test SpecificationDIN EN 60512-1-2:2003-01
ResultExam passed
Durability of inscriptions
Test SpecificationDIN EN 60068-2-70:1996-07
ResultExam passed
Polarization and Coding
Test SpecificationDIN EN 60512-13-5:2006-11
ResultExam passed
Mating and pulling forces
ResultExam passed
Number of cycles25
Insertion force per pole approx.10 N
Pulling force per pole approx.7 N
Thermal Testing Test Group C
Test SpecificationDIN EN 60512-5-1:2003-01
Tested number of poles16
Insulation resistance
Test SpecificationDIN EN 60512-3-1:2003-01
Insulation Resistance Adjacent Poles> 5 MΩ
Clearance and creepage distances
Test SpecificationDIN EN 60664-1 (VDE 0110-1):2008-01
Insulating material groupI
Tracking resistance (DIN EN 60112 (VDE 0303-11))CTI 600
Rated insulation voltage (III/3)250 V
Rated Surge Voltage (III/3)4 kV
Minimum air distance value - inhomogeneous field (III/3)3 mm
Minimum value of the creepage distance (III/3)3.2 mm
Rated insulation voltage (III/2)320 V
Rated Surge Voltage (III/2)4 kV
Minimum value of the air distance - inhomogeneous field (III/2)3 mm
Minimum value of the creepage distance (III/2)3 mm
Rated insulation voltage (II/2)400 V
Rated Surge Voltage (II/2)4 kV
Minimum value of the clearance - inhomogeneous field (II/2)3 mm
Minimum value of the creepage distance (II/2)3 mm
Vibration testing
Test SpecificationDIN EN 60068-2-6 (VDE 0468-2-6):2008-10
Frequency10 - 150 - 10 Hz
Sweep Speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 150 Hz)
Test duration per axis2.5 h
Test DirectionsX, Y and Z axis
Durability test
Test SpecificationDIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12
Standing Shock Stress at Sea Level4.8 kV
Contact resistance R13.7 mΩ
Contact resistance R23.7 mΩ
Mating cycles25
Insulation Resistance Adjacent Poles> 5 MΩ
Climatic testing
Test SpecificationDIN EN ISO 22479:2022-08
Corrosion stress0.2 dm3SO2to 300 DM3/40 °C/1 cycle
Heat stress100 °C/168 h
Standing AC voltage2.21 kV
Environmental conditions
Ambient temperature (operating)-40 °C ... 100 °C (depending on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (mounting)-5 °C ... 100 °C
Packaging typepacked in carton

ETIM for 5446105 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 4
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5 mm
Modular spacing connections (EF006827) 5 mm
Rated current In (EF008250) 12 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.4 mm
Length pin (EF006825) 3.9 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)
