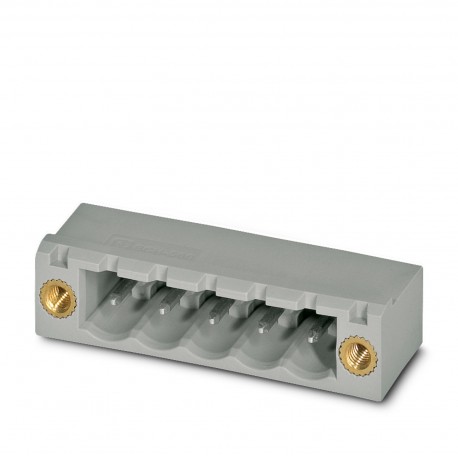

PHOENIX CONTACT BCH-500HF-5 GN BCH-500HF- 5 GN 5445287 PHOENIX CONTACT Housing base,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BCH-500HF- 5 GN 5445287 PHOENIX CONTACT Housing base,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º..

BCH-500HF-5 GN

5445287

PHOENIX CONTACT

100 Pcs.

Housing base,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º poles: 5,Pitch: 5 mm,Color: whitish green,contact Surface: Tin,Assembly: wave Soldering Printed circuit board base housing, nominal section: 2.5 mm², color: whitish green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 5, number of rows: 1, number of poles: 5, number of connections: 5, article family: BCH-HF, pitch: 5 mm, mounting: Wave soldering, Pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: BASICLINE 2.5, Plug-in face orientation: Standard, lock: Screw lock, fixing type: Air clamping (thread), packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Item Properties
Product TypePrinted circuit board base housing
Product FamilyBCH-HF
Product LineCOMBICON Connectors M
ConstructionStandard
Number of poles5
Step5 mm
Number of connections5
Number of rows1
Number of potentials5
Clamping flangeOverhead clamping (thread)
Pin DesignLinear Pin Arrangement
Number of Solder Pins Per Potential1
Data Maintenance Status
Article Review01
Electrical Properties
Nominal Current IN12 A
Nominal voltage UN320 V
Sizing voltage (III/3)250 V
Dimensioning transient voltage (III/3)4 kV
Dimensioning voltage (III/2)320 V
Dimensioning Transient Voltage (III/2)4 kV
Nominal voltage (II/2)400 V
Dimensioning transient voltage (II/2)4 kV
assembly
Type of mountingWave soldering
Pin DesignLinear Pin Arrangement
bridle
Tightening torque0.3 Nm
Material Data
Material data - contact
ObservationWEEE/RoHS compliant, filament-free according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu Alloy
Surface CharacteristicsGalvanically tinned
Metal surface contact area (top layer)Tin (4 - 8 μm Sn)
Metal Surface Contact Area (Middle Layer)Nickel (1.5 - 4 μm Ni)
Metal surface weld area (top layer)Tin (4 - 8 μm Sn)
Metal Surface Welding Area (Middle Layer)Nickel (1.5 - 4 μm Ni)
Material data - housing
Color (Housing)off-white green (6019)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability class according to UL 94V0
Flammability number of GWFI incandescent filaments according to EN 60695-2-12850
Ignition temperature of incandescent filaments GWIT according to EN 60695-2-13775
Ball hardness test temperature according to EN 60695-10-2125 °C
Notes
Observation regarding the operationAccording to DIN EN 61984, COMBICON connectors are connectors without switching power (COC). In the event of use as prescribed, they must not be plugged in or unplugged under voltage or under load.
Dimensions
Dimension Schemezzyynvpzer.jpg
Step5 mm
Width [w]35 mm
Height [h]11.8 mm
Length [l]12 mm
Overall Height8.57 mm
Weld Pin Length [P]3.23 mm
Temple Dimensions1 x 1 mm
Printed circuit board design
Hole diameter1.4 mm
Electrical Testing
Creepage Lines & Air Isolation Distances
Test SpecificationDIN EN 60664-1 (VDE 0110-1):2008-01
Insulating material groupI
Resistance to leakage currents (DIN EN 60112 (VDE 0303-11))CTI 600
Sizing Insulation Voltage (III/3)250 V
Nominal transient voltage (III/3)4 kV
minimum value of air insulation distance - non-homogeneous field (III/3)3 mm
Minimum creepage line value (III/3)3.2 mm
Sizing Insulation Voltage (III/2)320 V
Nominal transient voltage (III/2)4 kV
Minimum Value of Air Insulation Distance - Non-Homogeneous Field (III/2)3 mm
Minimum creepage line value (III/2)3 mm
Sizing Insulation Voltage (II/2)400 V
Nominal transient voltage (II/2)4 kV
Minimum Value of Air Insulation Distance - Non-Homogeneous Field (II/2)3 mm
Minimum creepage line value (II/2)3 mm
Environmental and life-life conditions
Environmental conditions
Ambient Temperature (Service)-40 °C ... 100 °C (depending on the rating curve)
Ambient Temperature (Storage/Transport)-40 °C ... 70 °C
Relative humidity of the air (storage/transport)30 % ... 70 %
Ambient Temperature (Mounting)-5 °C ... 100 °C
Packaging Information
Type of packagingBoxed Packaging

ETIM for 5445287 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 5
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5 mm
Modular spacing connections (EF006827) 5 mm
Rated current In (EF008250) 12 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.4 mm
Length pin (EF006825) 3.23 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)
