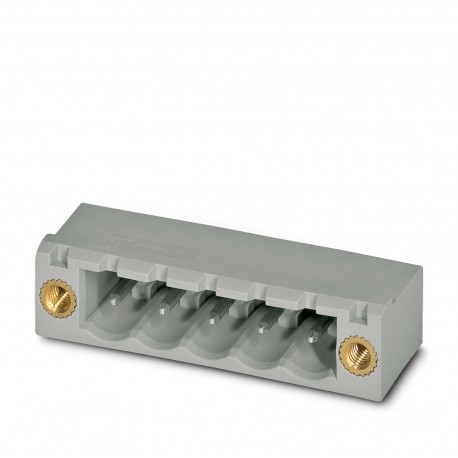

BCH-500HF-13 BK 5452362 PHOENIX CONTACT Housing base,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º..
BCH-500HF-13 BK
5452362
PHOENIX CONTACT
100 Pcs.
Housing base,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º poles: 13,Pitch: 5 mm,Color: black,contact Surface: Tin,Assembly: wave Soldering
Printed circuit board base housing, nominal section: 2.5 mm², color: black, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 13, number of rows: 1, number of poles: 13, number of connections: 13, article family: BCH-HF, pitch: 5 mm, mounting: Wave soldering, Pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: BASICLINE 2.5, Plug-in face orientation: Standard, lock: Screw lock, fixing type: Air clamping (thread), packaging type: boxed
PCB base socket, nominal cross-section: 2.5 mm2, colour: black, rated current: 12 A, dimensioning voltage (III/2): 320 V, contact surface: Sn, contact connection type: plug, number of potentials: 13, number of rows: 1, number of poles: 13, number of connections: 13, product series: BCH-HF, pitch: 5 mm, mounting: wave soldering, Pin layout: Linear pinning, pin length [P]: 3.23 mm, number of solder pins per potential: 1, pin system: BASICLINE 2.5, Insertion pin orientation: Standard, locking: Screw locking, fixing type: Threaded flange, packaging type: packed in carton
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Data commercial
| Key order | Five million four hundred fifty two thousand three hundred sixty two |
|---|---|
| Packing unit | 100 pcs |
| Key selling | AAYBFA - |
| Minimum order quantity | 100 pcs |
| EAN | Four trillion forty six billion three hundred fifty six million eight hundred fifty two thousand one hundred ninety seven |
| Unit weight (excluding packaging) | 6,384 g |
| Tariff number tariff | Eighty five million three hundred sixty six thousand nine hundred ninety |
| Country of origin | CN (China) |
Dimensions
| Length [ l ] | 12 mm |
|---|---|
| Width | 75 mm |
| Step | 5 mm |
| Average | 60 mm |
| Width [ w ] | 75 mm |
| Height [ h ] | 12,1 mm |
| Height of construction | 8.6 mm |
| Length of the pin welding | 3.5 mm |
| Dimensions of pin | 1 x 1 mm |
| Length | 12 mm |
Overview
| Family of articles | BCH-HF |
|---|---|
| Group insulating material | I |
| Transient voltage design (III/3) | 4 kV |
| Transient voltage design (III/2) | 4 kV |
| Transient voltage design (II/2) | 4 kV |
| Tension and sizing (III/3) | 250 V |
| Tension and sizing (III/2) | 320 V |
| Tension and sizing (II/2) | 400 V |
| Connection according to standard | EN-VDE |
| Nominal current IN | 12 To |
| Maximum load current | 12 To |
| Isolation | PA |
| Class of flammability according to UL 94 | V0 |
| Color | black |
| Number of poles | Thirteen |
Standards and specifications
| Connection according to standard | EN-VDE |
|---|---|
| CUL | |
| Class of flammability according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Space of time for the intended use (FEUP): 50 years |
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
Ratings
eCl@ss 4.0272607xxeCl@ss 4.1Twenty seven million two hundred sixty thousand seven hundred oneeCl@ss 5.0Twenty seven million two hundred sixty thousand seven hundred oneeCl@ss 5.1Twenty seven million two hundred sixty thousand seven hundredeCl@ss 6.0Twenty seven million two hundred sixty thousand seven hundredeCl@ss 7.0Twenty seven million four hundred forty thousand four hundred twoeCl@ss 8.0Twenty seven million four hundred forty thousand four hundred twoeCl@ss 9.0Twenty seven million four hundred forty thousand four hundred two
UNSPSC 6.01Thirty million two hundred eleven thousand eight hundred oneUNSPSC 7.0901Thirty nine million one hundred twenty one thousand four hundred thirty twoUNSPSC 11Thirty nine million one hundred twenty one thousand four hundred thirty twoUNSPSC 12.01Thirty nine million one hundred twenty one thousand four hundred nineUNSPSC 13.2Thirty nine million one hundred twenty one thousand four hundred nine
| Feature Name | Feature Value |
|---|---|
| Connector model (EF007495) | Fixed connector |
| Contact type (EF001587) | Pin |
| Number of poles (EF001391) | 13 |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 5 mm |
| Modular spacing connections (EF006827) | 5 mm |
| Rated current In (EF008250) | 12 A |
| Rated voltage (EF000228) | 320 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Material of contact surface (EF004020) | Tin |
| Type of electric connection (EF003961) | Other |
| Diameter connection pin (EF006823) | 1.4 mm |
| Length pin (EF006825) | 3.23 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of fastening (EF002442) | Other |
| Type of banding (EF007011) | Carton (for SMD) |
