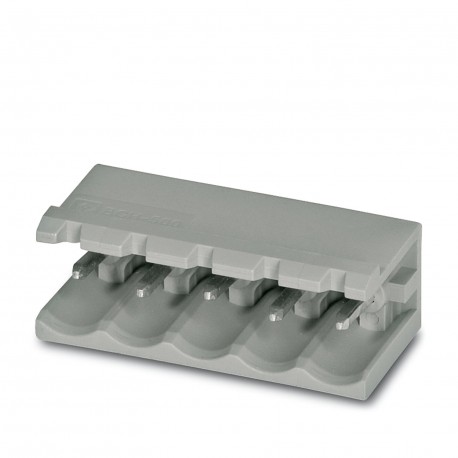

BCH-500H- 9 BK 5452274 PHOENIX CONTACT Housing base,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º ..
BCH-500H-9 BK
5452274
PHOENIX CONTACT
100 Pcs.
Housing base,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º poles: 9,Pitch: 5 mm,Color: black,contact Surface: Tin,Assembly: wave Soldering
Printed circuit board base housing, nominal section: 2.5 mm², color: black, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact connection type: Male, number of potentials: 9, number of rows: 1, number of poles: 9, number of connections: 9, article family: BCH-H, pitch: 5 mm, mounting: Wave soldering, Pin arrangement: Linear pin arrangement, pin length [P]: 3.4 mm, number of solder pins per potential: 1, plug-in system: BASICLINE 2.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed
PCB base socket, nominal cross-section: 2.5 mm2, colour: black, rated current: 12 A, dimensioning voltage (III/2): 320 V, contact surface: Sn, contact connection type: plug, number of potentials: 9, number of rows: 1, number of poles: 9, number of connections: 9, product series: BCH-H, pitch: 5 mm, mounting: wave soldering, Pin layout: Linear pinning, pin length [P]: 3.23 mm, number of solder pins per potential: 1, pin system: BASICLINE 2.5, Insertion pin orientation: Standard, locking: none, fastening type: none, packaging type: packed in carton
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Commercial data
| The code for the order | Five million four hundred fifty two thousand two hundred seventy four |
|---|---|
| Pieces/pack. | 100 PCS |
| Sales key | AAYBFA - |
| The amount of minimum order | 100 PCS |
| GTIN | Four trillion forty six billion three hundred fifty six million eight hundred fifty three thousand seventy one |
| Weight per piece (package included) | 2,925 g |
| Number customs tariff | Eighty five million three hundred sixty six thousand nine hundred ninety |
Size
| Length [ l ] | 12 mm |
|---|---|
| Width | 45 mm |
| Step | 5 mm |
| Measure | 40 mm |
| Width [ w ] | 45 mm |
| Height [ h ] | 12 mm |
| Mounting height | 8.6 mm |
| Pin length solder | 3.4 mm |
| The size of the shanks | 1 x 1 mm |
| Length | 12 mm |
General
| Family article | BCH-H |
|---|---|
| Group insulating material | The |
| Surge voltage strength (III/3) | 4 kV |
| Surge voltage strength (III/2) | 4 kV |
| Surge voltage strength (II/2) | 4 kV |
| Rating voltage (III/3) | 250 V |
| Rating voltage (III/2) | 320 V |
| Rating voltage (II/2) | 400 V |
| Attack in accordance with | EN-VDE |
| Rated current IN | 12 To |
| Maximum load current | 12 To |
| Insulating material | PA |
| Class behaviour according to UL 94 | V0 |
| Color | black |
| N. of poles | Nine |
Environmental Product Compliance
| China RoHS | Period for proper use: unlimited = EFUP-and |
|---|---|
| Any hazardous substances above the threshold values |
Rankings
eCl@ss 4.0272607xxeCl@ss 4.1Twenty seven million two hundred sixty thousand seven hundred oneeCl@ss 5.0Twenty seven million two hundred sixty thousand seven hundred oneeCl@ss 5.1Twenty seven million two hundred sixty thousand seven hundredeCl@ss 6.0Twenty seven million two hundred sixty thousand seven hundredeCl@ss 7.0Twenty seven million four hundred forty thousand four hundred twoeCl@ss 8.0Twenty seven million four hundred forty thousand four hundred twoeCl@ss 9.0Twenty seven million four hundred forty thousand four hundred two
UNSPSC 6.01Thirty million two hundred eleven thousand eight hundred oneUNSPSC 7.0901Thirty nine million one hundred twenty one thousand four hundred thirty twoUNSPSC 11Thirty nine million one hundred twenty one thousand four hundred thirty twoUNSPSC 12.01Thirty nine million one hundred twenty one thousand four hundred nineUNSPSC 13.2Thirty nine million one hundred twenty one thousand four hundred nine
| Feature Name | Feature Value |
|---|---|
| Connector model (EF007495) | Fixed connector |
| Contact type (EF001587) | Pin |
| Number of poles (EF001391) | 9 |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 5 mm |
| Modular spacing connections (EF006827) | 5 mm |
| Rated current In (EF008250) | 12 A |
| Rated voltage (EF000228) | 320 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Material of contact surface (EF004020) | Tin |
| Type of electric connection (EF003961) | Other |
| Diameter connection pin (EF006823) | 1.4 mm |
| Length pin (EF006825) | 3.23 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of fastening (EF002442) | Other |
| Type of banding (EF007011) | Carton (for SMD) |
