PHOENIX CONTACT BCH-500H-3 BK BCH-500H-3 BK 5452268 PHOENIX CONTACT Housing base,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º p.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BCH-500H-3 BK 5452268 PHOENIX CONTACT Housing base,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º p..

BCH-500H-3 BK

5452268

PHOENIX CONTACT

100 Pcs.

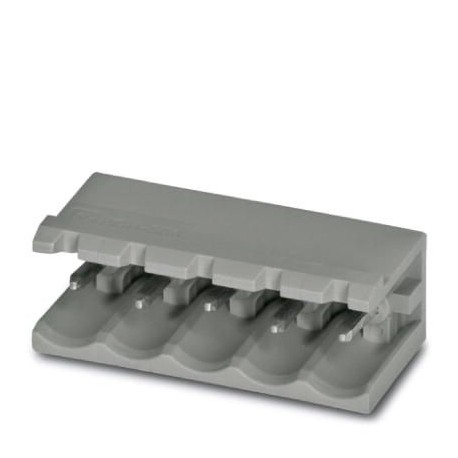

Housing base,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º poles: 3,Pitch: 5 mm,Color: black,contact Surface: Tin,Assembly: wave Soldering Printed circuit board base housing, nominal section: 2.5 mm², color: black, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact connection type: Male, number of potentials: 3, number of rows: 1, number of poles: 3, number of connections: 3, family of articles: BCH-H, pitch: 5 mm, mounting: Wave soldering, Pin arrangement: Linear pin arrangement, pin length [P]: 3.4 mm, number of solder pins per potential: 1, plug-in system: BASICLINE 2.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Trade data

Order CodeFive million four hundred fifty two thousand two hundred sixty eight
Packaging unit100 pcs
Minimum order quantity100 pcs
NoteManufacturing to the order (no recovery)
GTINFour trillion forty six billion three hundred fifty six million eight hundred fifty three thousand one hundred thirty two
Weight per piece (excluding packing)Of 0.001 KGM
Number of the customs tariffEighty five million three hundred sixty six thousand nine hundred thirty
Country of originCN (China)

Dimensions

Length [ l ]12 mm
Width15 mm
Not5 mm
Rated10 mm
Width [ w ]15 mm
Height [ h ]12 mm
Mounting heightThe 8.6 mm
Length of the picot3.4 mm
Dimensions of spikes1 x 1 mm
Length12 mm

General

Family articlesBCH-H
Group of insulationI
Impulse voltage assigned (III/3)4 kV
Impulse voltage assigned (III/2)4 kV
Impulse voltage assigned to (II/2)4 kV
Reference voltage (III/3)250 V
Rated voltage (III/2)320 V
Rated voltage (II/2)400 V
Connection according to standardEN-VDE
Rated current INTwelve
Maximum charge currentTwelve
Insulating materialPA
Flammability class according to UL 94V0
Coloursblack
Number of polesThree

Standards and specifications

Connection according to standardEN-VDE
ASS
Flammability class according to UL 94V0

Environmental Product Compliance

China RoHSPeriod of intended use : unlimited = EFUP-e
No hazardous substances exceeding the threshold values ;

Classifications


ETIM for 5452268 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 3
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5 mm
Modular spacing connections (EF006827) 5 mm
Rated current In (EF008250) 12 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.4 mm
Length pin (EF006825) 3.23 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
