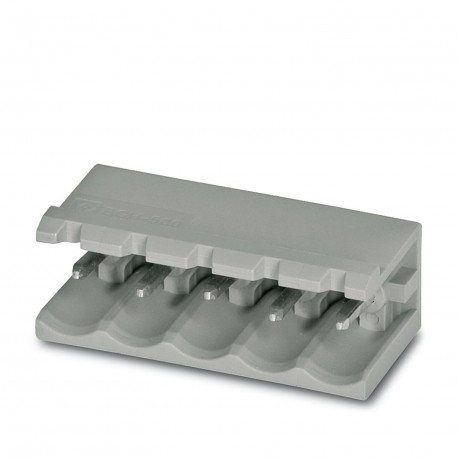

PHOENIX CONTACT BCH-500H-23 GN BCH-500H-23 GN 5445232 PHOENIX CONTACT Housing base,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BCH-500H-23 GN 5445232 PHOENIX CONTACT Housing base,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º ..

BCH-500H-23 GN

5445232

PHOENIX CONTACT

100 Pcs.

Housing base,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º poles: 23,Pitch: 5 mm,Color: whitish green,contact Surface: Tin,Assembly: wave Soldering Printed circuit board base housing, nominal section: 2.5 mm², color: whitish green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact connection type: Male, number of potentials: 23, number of rows: 1, number of poles: 23, number of connections: 23, article family: BCH-H, pitch: 5 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: BASICLINE 2.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed PCB header, nominal cross-section: 2.5 mm2, colour: green white, nominal current: 12 A, reference voltage (III/2): 320 V, contact area: Sn, contact type: Male, number of potentials: 23, number of rows: 1, number of poles: 23, number of connections: 23, article range: BCH-H, pitch: 5 mm, mounting: Wave soldering, Spindle plan: Linear pinout, spindle length [P]: 3.23 mm, Number of pins per potential: 1, Plug-in system: BASICLINE 2.5, Orientation of the plug-in pattern: Standard, Locking: without, Fastening type: without, Packaging type: Packed in a carton

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Product TypePCB header
Product rangeBCH-H
Product LineCOMBICON Connectors M
TypeStandard
Number of poles23
Steps5 mm
Number of connections23
Number of rows1
Number of potentials23
Mounting Flangewithout
Pinout plotLinear pinout
Number of pins per potential1
Data Management Status
Revision of the article00
Rated Current IN12 A
Rated voltage UN320 V
Reference voltage (III/3)250 V
Rated Shock Resistance Voltage (III/3)4 kV
Rated Voltage (III/2)320 V
Rated Shock Withstand Voltage (III/2)4 kV
Reference voltage (II/2)400 V
Rated Shock Withstand Voltage (II/2)4 kV
Mounting TypeWave Welding
Pinout plotLinear pinout
Material indication - contact
NoteWEEE/RoHS compliant, trichite-free according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu Alloy
Surface qualityGalvanic tinning
Metal surface, contact area (top layer)Tin (4 - 8 μm Sn)
Metal surface, contact area (middle layer)Nickel (1.5 - 4 μm Ni)
Metal surface, welding area (top layer)Tin (4 - 8 μm Sn)
Metal surface, welding area (middle layer)Nickel (1.5 - 4 μm Ni)
Material indication - housing
Colors (Cases)Green White (6019)
Insulating materialPA
Insulation GroupI
CRI according to IEC 60112600
Flammability class according to UL 94V0
GWFI glow wire flammability class according to EN 60695-2-12850
GWIT glow wire ignition temperature according to EN 60695-2-13775
Ball pressure test temperature according to EN 60695-10-2125 °C
Operating InformationMINICONNEC connectors are connectors without switching power (COC) in accordance with DIN EN 61984. When used correctly, they should not be plugged in or disconnected if they are under load or powered on.
Dimensioned drawing
Steps5 mm
Width [w]115 mm
Height [h]11.8 mm
Length [l]12 mm
Mounting height8.57 mm
Welding pin length [P]3.23 mm
Dimensions of the pins1 x 1 mm
PCB design
Drilling Diameter1.4 mm
Air Distances and Trailing Lines
Control SpecificationDIN EN 60664-1 (VDE 0110-1):2008-01
Insulation GroupI
Resistance to leakage currents (DIN EN 60112 (VDE 0303-11))SIC 600
Rated Insulation Voltage (III/3)250 V
Rated Shock Resistance Voltage (III/3)4 kV
minimum value of distance in air - non-homogeneous field (III/3)3 mm
minimum creepage value (III/3)3.2 mm
Rated Insulation Voltage (III/2)320 V
Rated Shock Voltage (III/2)4 kV
minimum value of distance in air - non-homogeneous field (III/2)3 mm
minimum creepage value (III/2)3 mm
Rated Insulation Voltage (II/2)400 V
Rated Shock Withstand Voltage (II/2)4 kV
minimum value of distance in air - non-homogeneous field (II/2)3 mm
minimum creepage value (II/2)3.2 mm
Environmental conditions
Ambient Temperature (Operating)-40 °C ... 100 °C (depending on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity of the air (storage/transport)30 % ... 70 %
Ambient temperature (mounting)-5 °C ... 100 °C
Type of packagingpacked in a carton

ETIM for 5445232 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 23
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5 mm
Modular spacing connections (EF006827) 5 mm
Rated current In (EF008250) 12 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.4 mm
Length pin (EF006825) 3.23 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
