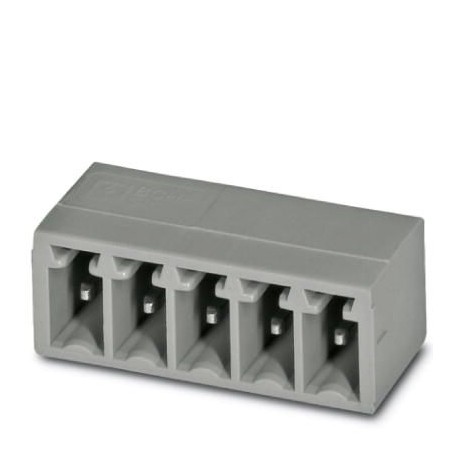

PHOENIX CONTACT BCH-381H-5 BK BCH-381H- 5 BK 5452030 PHOENIX CONTACT Housing base,nominal Current: 8 A,rated Voltage (III/2): 160 V,N. º p.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BCH-381H- 5 BK 5452030 PHOENIX CONTACT Housing base,nominal Current: 8 A,rated Voltage (III/2): 160 V,N. º p..

BCH-381H-5 BK

5452030

PHOENIX CONTACT

100 Pcs.

Housing base,nominal Current: 8 A,rated Voltage (III/2): 160 V,N. º poles: 5,Pitch: 3,81 mm,Color: black,contact Surface: Tin,Assembly: wave Soldering Printed circuit board base housing, nominal section: 1.5 mm², color: black, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 5, number of rows: 1, number of poles: 5, number of connections: 5, article family: BCH-H, pitch: 3.81 mm, mounting: Wave soldering, Pin arrangement: Linear pin arrangement, pin length [P]: 3.4 mm, number of solder pins per potential: 1, plug-in system: BASICLINE 1.5, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Data commercial

Key orderFive million four hundred fifty two thousand thirty
Packing unit100 pcs
Key sellingAAYBFA -
Minimum order quantity100 pcs
EANFour trillion forty six billion three hundred fifty six million eight hundred fifty five thousand five hundred eighteen
Unit weight (excluding packaging)0,500 g
Tariff number tariffEighty five million three hundred sixty six thousand nine hundred ninety
Country of originCN (China)

Dimensions

Length [ l ]9,2 mm
Width20,44 mm
Step3,81 mm
AverageOf 15.24 mm
Width [ w ]20,44 mm
Height [ h ]10.8 mm
Height of construction7.4 mm
Length of the pin welding3.4 mm
Dimensions of pin0.8 x 0.8 mm
Length9,2 mm

Overview

Family of articlesBCH-H
Group insulating materialI
Transient voltage design (III/3)2.5 kV
Transient voltage design (III/2)2.5 kV
Transient voltage design (II/2)2.5 kV
Tension and sizing (III/3)160 V
Tension and sizing (III/2)160 V
Tension and sizing (II/2)320 V
Connection according to standardEN-VDE
Nominal current IN8 To
IsolationPA
Class of flammability according to UL 94V0
Colorblack
Number of polesFive

Standards and specifications

Connection according to standardEN-VDE
CUL
Class of flammability according to UL 94V0

Environmental Product Compliance

China RoHSSpace of time for the intended use: unlimited = FEUP-e
No dangerous substances above the thresholds

Ratings


ETIM for 5452030 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 5
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 3.81 mm
Modular spacing connections (EF006827) 3.81 mm
Rated current In (EF008250) 8 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.2 mm
Length pin (EF006825) 3.4 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
