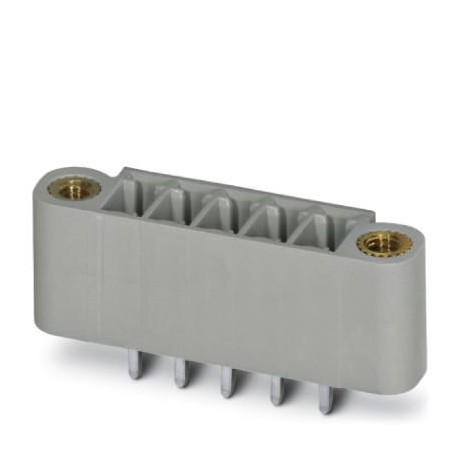

PHOENIX CONTACT BCH-350VF-10 GY BCH-350VF-10 GY 5431071 PHOENIX CONTACT Printed-circuit board connector BCH-350VF-10 GY 5431071 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BCH-350VF-10 GY 5431071 PHOENIX CONTACT Printed-circuit board connector BCH-350VF-10 GY 5431071

BCH-350VF-10 GY

5431071

PHOENIX CONTACT

100 Pcs.

Printed-circuit board connector - BCH-350VF-10 GY - 5431071 Printed circuit board base housing, nominal section: 1.5 mm², color: signal gray, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 10, number of rows: 1, number of poles: 10, number of connections: 10, article family: BCH-VF, pitch: 3.5 mm, mounting: Wave soldering, Pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, number of welding pins per potential: 1, plug-in system: BASICLINE 1.5, Plug-in face orientation: Standard, lock: Screw lock, fixing type: Air clamping (thread), packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

PCB headers, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 10, pitch: 3.5 mm, color: signal grey, contact surface: Tin, mounting: Wave soldering

Key Commercial Data

Orderkey5431071
Packing unit100 pc
Minimum order quantity100 pc
NoteMade to Order (non-returnable)
GTIN4046356492768
Weight per Piece (excluding packing)2.600 g
Custom tariff number85366930
Country of originCN (China)

Dimensions

Length [ l ]7.4 mm
Width45.3 mm
Pitch3.5 mm
Dimension a31.5 mm
Width [ w ]45.3 mm
Height [ h ]12.7 mm
Height9.2 mm
Length of the solder pin3.5 mm
Pin dimensions0.8 x 0.8 mm
Length7.4 mm

General

Range of articlesBCH-VF
Insulating material groupI
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)160 V
Rated voltage (III/2)160 V
Rated voltage (II/2)320 V
Connection in acc. with standardEN-VDE
Nominal current IN8 A
Maximum load current8 A
Insulating materialPA
Flammability rating according to UL 94V0
Colorsignal grey
Number of positions10

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHC
Lead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications
