View larger
Images are for illustrative purposes only. Please refer to data sheet for details

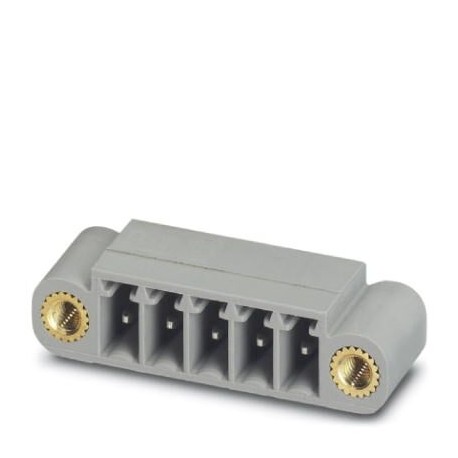

BCH-350HF-10 GN 5443849 PHOENIX CONTACT Printed-circuit board connector
BCH-350HF-10 GN
5443849
PHOENIX CONTACT
1 Pcs.
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Printed-circuit board connector
Base housing printed circuit board, nominal section: 1.5 mm², colour: whitish green, rated current: 8 A, sizing voltage (III/2): 160 V, surface contacts: Tin, contact type: Male, Number of potentials: 10, Number of rows: 1, Number of poles per row: 10, number of connections: 10, article family: BCH-HF, pitch: 3.5 mm, Mounting: Wave welding, pin arrangement: Linear pin arrangement, pin length [P]: 3.4 mm, Stecksystem: BASICLINE 1.5, Locking: Screw locking, packing type: boxed packaging
Base housing printed circuit board, nominal section: 1.5 mm², colour: whitish green, rated current: 8 A, sizing voltage (III/2): 160 V, surface contacts: Tin, contact type: Male, Number of potentials: 10, Number of rows: 1, Number of poles per row: 10, number of connections: 10, article family: BCH-HF, pitch: 3.5 mm, Mounting: Wave welding, pin arrangement: Linear pin arrangement, pin length [P]: 3.4 mm, Stecksystem: BASICLINE 1.5, Locking: Screw locking, packing type: boxed packaging
