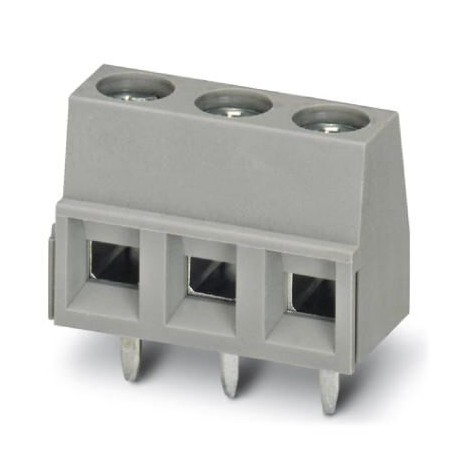

PHOENIX CONTACT BC-508X10-3 GN TS BC-508X10-3 GN TS 5451815 PHOENIX CONTACT Terminal p. printed circuit board, rated Current: 13,5 A, nominal .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BC-508X10-3 GN TS 5451815 PHOENIX CONTACT Terminal p. printed circuit board, rated Current: 13,5 A, nominal ..

BC-508X10-3 GN TS

5451815

PHOENIX CONTACT

100 Pcs.

Terminal p. printed circuit board, rated Current: 13,5 A, nominal Voltage: 400 V, Pitch: 5,08 mm, Number of poles: 3, Type of connection: Connection by screw with capsule-traction, Assembly: Soldering by wave Direction for connection Conductor/pcb: 0 °, Color: whitish green Terminal block for printed circuit board, nominal current: 13.5 A, nominal voltage (III/2): 400 V, nominal cross-section: 1.5 mm², number of potentials: 3, number of rows: 1, number of poles per row: 3, article family: BC-X10, pitch: 5.08 mm, connection type: Screw connection with traction capsule, mounting: Wave soldering, conductor connection direction/printed circuit board: 0°, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5 mm, number of solder pins per potential: 1, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Data commercial

Key orderFive million four hundred fifty one thousand eight hundred fifteen
Packing unit100 pcs
Key sellingAAYAAA -
Minimum order quantity100 pcs
EANFour trillion forty six billion three hundred fifty six million eight hundred four thousand six hundred twenty two
Unit weight (excluding packaging)2,570 g
Tariff number tariffEighty five million three hundred sixty nine thousand ten
Country of originCN (China)

Dimensions

Length [ l ]8.1 mm
Step5,08 mm
Average10,16 mm
Width [ w ]Of 15.24 mm
Height of construction10 mm
Height [ h ]13.5 mm
Length of pin [P]3.5 mm
Diameter hole1.3 mm

Overview

Family of articlesBC-X10
Transient voltage design (III/3)4 kV
Transient voltage design (III/2)4 kV
Transient voltage design (II/2)4 kV
Tension and sizing (III/3)250 V
Tension and sizing (III/2)400 V
Tension and sizing (II/2)630 V
Connection according to standardEN-VDE
Nominal current IN13.5 To
Nominal cross section1.5 mm2
Surface pin welding
Gauge maleA1
Length desaislar6 mm
Number of polesThree
Screw threadM3
Tightening torque min.0.5 Nm
Tightening torque max.0.6 Nm

Data connection

Core cross-section rigid min.0.14 mm2
Section of conductor rigid max.1.5 mm2
Section of flexible conductor, min.0.14 mm2
Section of flexible conductor max.1.5 mm2
Section of flexible conductor with toe cap, without plastic sleeve min.0.25 mm2
Section of flexible conductor with toe cap, without plastic sleeve max.1 mm2
Section of flexible conductor with toe, with plastic sleeve min.0.25 mm2
Section of flexible conductor with toe, with plastic sleeve max.1.5 mm2
Section of conductor AWG min.Twenty six
Section of conductor AWG max.Sixteen
2 conductors with same cross section, rigid min.0.14 mm2
2 conductors with same cross section, rigid max.0.75 mm2
2 conductors with same cross section, flexible, min.0.14 mm2
2 conductors with same cross section, flexible max.0.75 mm2
2 conductors with same cross section, flexible with AEH without plastic sleeve min.0.25 mm2
2 conductors with same cross section, flexible with AEH without plastic sleeve max.0.5 mm2
2 conductors with same cross section, flexible with TWIN-AEH with plastic sleeve min.0.5 mm2
2 conductors with same cross section, flexible with TWIN-AEH with plastic sleeve max.0.75 mm2

Standards and specifications

Connection according to standardEN-VDE
CUL

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSSpace of time for the intended use (FEUP): 50 years
You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab

Ratings


ETIM for 5451815 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 13.5 mm
Number of electrical connections (EF008252) 3
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 5.08 mm
Rated current In (EF008250) 13.5 A
Rated voltage (EF000228) 400 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Screw connection
Connectable conductor cross section solid-core (EF007337) 0.14 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.14 mm²
Connectable conductor cross section multi-wired (EF007343) 0.14 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1.3 mm
Length pin (EF006825) 3.5 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Connecting contact
Type of fastening (EF002442) Solder
Type of banding (EF007011) Carton (for SMD)
