View larger
Images are for illustrative purposes only. Please refer to data sheet for details

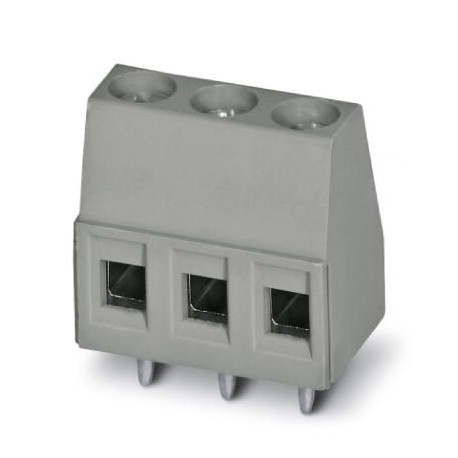

BC-500X14-8 GN BD:1-8 5474135 PHOENIX CONTACT Terminal for p. c. i.
BC-500X14-8 GN BD:1-8
5474135
PHOENIX CONTACT
100 Pcs.
Terminal for p. c. i.
Terminal block for printed circuit board, nominal current: 17.5 A, nominal voltage (III/2): 400 V, nominal cross-section: 1.5 mm², number of potentials: 8, number of rows: 1, number of poles per row: 8, article family: BC-X14, pitch: 5 mm, connection type: Screw connection with traction capsule, mounting: Wave soldering, conductor connection direction/printed circuit board: 0°, Color: Whitish Green, Number of Solder Pins per Potential: 1, Packaging Type: Boxed Packed
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Data commercial
| Key order | Five million four hundred seventy four thousand one hundred thirty five |
|---|---|
| Packing unit | 100 pcs |
| Key selling | AAYAAA - |
| Minimum order quantity | 100 pcs |
| EAN | Four trillion fifty five billion six hundred twenty six million one hundred twenty seven thousand four hundred eighty four |
| Unit weight (excluding packaging) | 8,000 g |
| Tariff number tariff | Eighty five million three hundred sixty nine thousand ten |
| Country of origin | CN (China) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Space of time for the intended use (FEUP): 50 years |
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
Ratings
eCl@ss 5.1Twenty seven million two hundred sixty one thousand one hundredeCl@ss 6.0Twenty seven million two hundred sixty one thousand one hundredeCl@ss 7.0Twenty seven million four hundred forty thousand four hundred oneeCl@ss 8.0Twenty seven million four hundred forty thousand four hundred oneeCl@ss 9.0Twenty seven million four hundred forty thousand four hundred one
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 17.3 mm |
| Number of electrical connections (EF008252) | 8 |
| Number of levels (EF002659) | 1 |
| Modular spacing connections (EF006827) | 5 mm |
| Rated current In (EF008250) | 17.5 A |
| Rated voltage (EF000228) | 400 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connection type conductor (EF006821) | Screw connection |
| Connectable conductor cross section solid-core (EF007337) | 0.14 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.25 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.14 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.14 mm² |
| Connection type PCB (EF006822) | Soldering connection |
| Material connection surface (EF006826) | Tin |
| Diameter connection pin (EF006823) | 1.3 mm |
| Length pin (EF006825) | 3.5 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of PCB fastening (EF008226) | Connecting contact |
| Type of fastening (EF002442) | Solder |
| Type of banding (EF007011) | Carton (for SMD) |
