View larger
Images are for illustrative purposes only. Please refer to data sheet for details

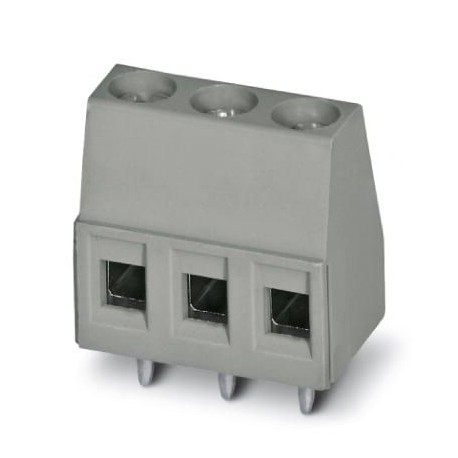

BC-500X14- 4 GN BD:1-4 5474119 PHOENIX CONTACT Terminal for p. c. i.
BC-500X14- 4 GN BD:1-4
5474119
PHOENIX CONTACT
100 Pcs.
Terminal for p. c. i.
Terminal block for printed circuit board, nominal current: 17.5 A, dimensioning voltage (III/2): 400 V, nominal section: 1.5 mm², Number of potentials: 4, Number of rows: 1, Number of poles per row: 4, article family: BC-X14, pitch: 5 mm, connection type: Screw connection with traction capsule, mounting: Wave soldering, Connection Direction Driver/Printed Circuit Board: 0°, Color: off-white green, Packaging Type: Boxed Packed
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Data commercial
| Key order | Five million four hundred seventy four thousand one hundred nineteen |
|---|---|
| Packing unit | 100 pcs |
| Key selling | AAYAAA - |
| Minimum order quantity | 100 pcs |
| EAN | Four trillion fifty five billion six hundred twenty six million one hundred twenty eight thousand sixteen |
| Unit weight (excluding packaging) | 5,554 g |
| Tariff number tariff | Eighty five million three hundred sixty nine thousand ten |
| Country of origin | CN (China) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Space of time for the intended use (FEUP): 50 years |
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
