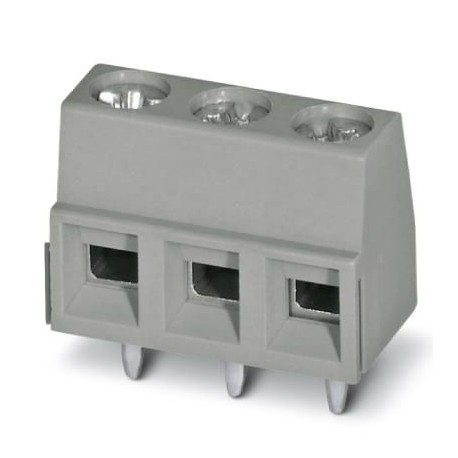

BC-500X10- 6 GY 5451828 PHOENIX CONTACT Terminal p. printed circuit board, rated Current: 13,5 A, nominal Vo..
BC-500X10-6 GY
5451828
PHOENIX CONTACT
100 Pcs.
Terminal p. printed circuit board, rated Current: 13,5 A, nominal Voltage: 400 V, Type of connection: Connection by screw with capsule-traction, Assembly: Soldering by wave Direction for connection Conductor/pcb: 0 °, Color: gray signals
Terminal block for printed circuit board, nominal current: 13.5 A, nominal voltage (III/2): 400 V, nominal cross-section: 1.5 mm², number of potentials: 6, number of rows: 1, number of poles per row: 6, article family: BC-X10, pitch: 5 mm, connection type: Screw connection with traction capsule, mounting: Wave soldering, conductor connection direction/printed circuit board: 0°, color: gray signals, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5 mm, number of solder pins per potential: 1, packaging type: boxed
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Trade data
| Order Code | Five million four hundred fifty one thousand eight hundred twenty eight |
|---|---|
| Packaging unit | 100 pcs |
| Minimum order quantity | 100 pcs |
| Note | Manufacturing to the order (no recovery) |
| GTIN | Four trillion forty six billion three hundred fifty six million nine hundred ninety one thousand three hundred ninety one |
| Weight per piece (excluding packing) | 0,006 KGM |
| Number of the customs tariff | Eighty five million three hundred sixty nine thousand ten |
| Country of origin | CN (China) |
Dimensions
| Length [ l ] | 8.15 mm |
|---|---|
| Not | 5 mm |
| Rated | 25 mm |
| Width [ w ] | 29,95 mm |
| Mounting height | 9,97 mm |
| Height [ h ] | 13,47 mm |
| Length of pin [P] | 3.5 mm |
| Drilling diameter | 1.3 mm |
General
| Family articles | BC-X10 |
|---|---|
| Impulse voltage assigned (III/3) | 4 kV |
| Impulse voltage assigned (III/2) | 4 kV |
| Impulse voltage assigned to (II/2) | 4 kV |
| Reference voltage (III/3) | 250 V |
| Rated voltage (III/2) | 400 V |
| Rated voltage (II/2) | 630 V |
| Connection according to standard | EN-VDE |
| Rated current IN | 13.5 A |
| Nominal Section | 1.5 mm2 |
| Pin soldering surface | |
| Template | A1 |
| Length stripping tool | 6 mm |
| Number of poles | Six |
| Thread screws | M3 |
| Tightening torque min. | 0.5 Nm |
| Tightening torque max. | 0.6 Nm |
Characteristics of connection
| Cross Section of the conductor AWG min. | Twenty six |
|---|---|
| Cross Section of wire AWG max. | Sixteen |
| 2 solid conductors of the same cross-section min. | 0.14 mm2 |
| 2 solid conductors of the same cross-section max. | 0.75 mm2 |
| 2 conductors flexible same cross-section min. | 0.14 mm2 |
| 2 conductors flexible same cross-section max. | 0.75 mm2 |
| 2-conductor, flexible, in the same section with AEH without inlet cone insulation min. | 0.25 mm2 |
| 2-conductor, flexible, in the same section with AEH without inlet cone insulation max. | 0.5 mm2 |
| 2-conductor, flexible, in the same section with TWIN-AEH and inlet cone insulation min. | 0.5 mm2 |
| 2-conductor, flexible, in the same section with TWIN-AEH and inlet cone insulation max. | 0.75 mm2 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Period of intended use (EFUP) : 50 years |
| The manufacturer's declaration in the tab "Downloads" contains detailed information on hazardous substances. |
Classifications
eCl@ss 5.1Twenty seven million two hundred sixty thousand seven hundred oneeCl@ss 6.0Twenty seven million two hundred sixty one thousand one hundred oneeCl@ss 8.0Twenty seven million four hundred forty thousand four hundred oneeCl@ss 9.0Twenty seven million four hundred forty thousand four hundred one
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 13.47 mm |
| Number of electrical connections (EF008252) | 6 |
| Number of levels (EF002659) | 1 |
| Modular spacing connections (EF006827) | 5 mm |
| Rated current In (EF008250) | 13.5 A |
| Rated voltage (EF000228) | 400 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connection type conductor (EF006821) | Screw connection |
| Connectable conductor cross section solid-core (EF007337) | 0.14 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.25 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.14 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.14 mm² |
| Connection type PCB (EF006822) | Soldering connection |
| Material connection surface (EF006826) | Tin |
| Diameter connection pin (EF006823) | 1.3 mm |
| Length pin (EF006825) | 3.5 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of PCB fastening (EF008226) | Connecting contact |
| Type of fastening (EF002442) | Solder |
| Type of banding (EF007011) | Carton (for SMD) |
