View larger
Images are for illustrative purposes only. Please refer to data sheet for details

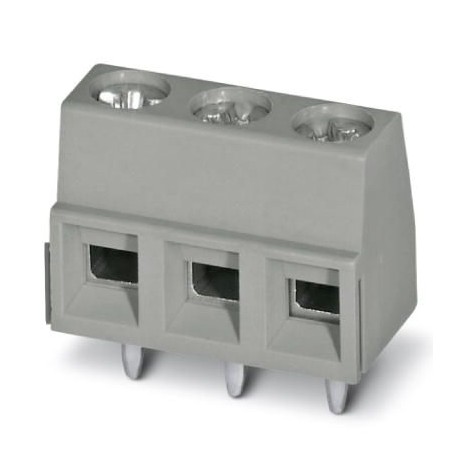

BC-500X10- 5 BK PA1,3,5 5430194 PHOENIX CONTACT PCB terminal block
BC-500X10- 5 BK PA1,3,5
5430194
PHOENIX CONTACT
100 Pcs.
PCB terminal block
Terminal block for printed circuit board, nominal current: 13.5 A, dimensioning voltage (III/2): 400 V, nominal section: 1.5 mm², Number of potentials: 5, Number of rows: 1, Number of poles per row: 5, article family: BC-X10, pitch: 5 mm, connection type: Screw connection with traction capsule, mounting: Wave soldering, Connection direction conductor/printed circuit board: 0 °, color: black, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5mm, packaging type: boxed
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 5430194 |
|---|---|
| Packing unit | 100 pc |
| Minimum order quantity | 100 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626290454 |
| Weight per Piece (excluding packing) | 3.000 g |
| Custom tariff number | 85369010 |
| Country of origin | CN (China) |
Dimensions
| Length [ l ] | 8.15 mm |
|---|---|
| Pitch | 5 mm |
| Dimension a | 20 mm |
| Width [ w ] | 24.95 mm |
| Height | 9.97 mm |
| Height [ h ] | 13.47 mm |
| Solder pin [P] | 3.5 mm |
| Hole diameter | 1.3 mm |
General
| Range of articles | BC-X10 |
|---|---|
| Insulating material group | I |
| Rated voltage (III/2) | 400 V |
| Nominal current IN | 13.5 A |
| Nominal cross section | 1.5 mm² |
| Solder pin surface | |
| Flammability rating according to UL 94 | V0 |
| Number of positions | 5 |
| Screw thread | M3 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
