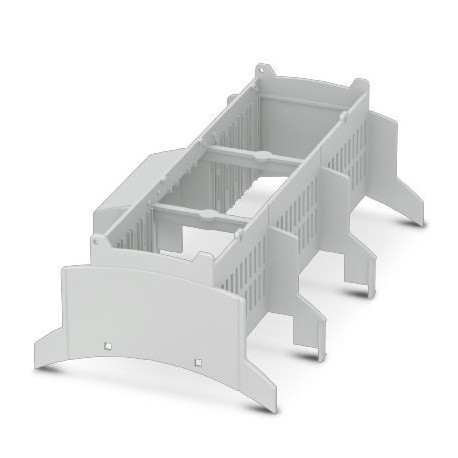

PHOENIX CONTACT BC 161,6 OT 220222 KMGY MOQ100 BC 161,6 OT 220222 KMGY MOQ100 1126202 PHOENIX CONTACT DIN rail housing for use in distribution boards in ac.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BC 161,6 OT 220222 KMGY MOQ100 1126202 PHOENIX CONTACT DIN rail housing for use in distribution boards in ac..

BC 161,6 OT 220222 KMGY MOQ100

1126202

PHOENIX CONTACT

100 Pcs.

DIN rail housing for use in distribution boards in accordance with DIN 43880, Upper housing part with vents, width: 161.6 mm, height: 89.7 mm, depth: 54.85 mm, color: light gray (7035) Rail box for use in installation distributors according to DIN 43880, Top of the modular housing, width: 161.6 mm, height: 89.7 mm, depth: 54.85 mm, colour: light grey (7035)

Automation > Extruded profile modular housing
Housing (HS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1126202
Packing unit1
GTIN4063151053581
Custom tariff number85389099

Drawings

Dimensional drawing

Dimensional drawing

Back to top

Item properties

Brief article descriptionUpper part of housing
TypeBC 161,6 OT 220222 KMGY MOQ100
Order No.1126202
Housing typeDIN rail housing for use in distribution boards in accordance with DIN 43880
TypeUpper housing part with vents
Max. IP code to attainIP20
Mounting typeSnap in
Connection levels1 (Both sides)
Ventilation openings presentyes
Back to top

Dimensions

Dimensional drawing
Width [ w ]161.6 mm
Height [ h ]89.7 mm
Depth [ d ]54.85 mm
Back to top

Material data

Color (RAL)light gray (7035)
Flammability rating according to UL 94V0
Housing materialPolycarbonate
Back to top

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient temperature (operation)-40 °C ... 105 °C (depending on power dissipation)
Relative humidity (storage/transport)95 %
Back to top

PCB data

PCB thickness1.8 mm
Mounting positionparallel to the DIN rail
Type of PCB mountLatching
Back to top

General information

Type of noteAssembly instruction:
NoteRefer to the data sheet for the range in the download area.
Back to top

Packaging information

Type of packagingpacked in cardboard
Pieces per package10
Denomination packing unitsPcs.
Outer packaging typeCarton
Back to top

Standards and regulations

Flammability rating according to UL 94V0
Back to top

Classifications

eCl@ss

eCl@ss 4.027180401
eCl@ss 4.127180401
eCl@ss 5.027180506
eCl@ss 5.127180500
eCl@ss 6.027180800
eCl@ss 7.027182702
eCl@ss 8.027182702
eCl@ss 9.027182702
Back to top

ETIM

ETIM 2.0EC001031
ETIM 3.0EC001031
ETIM 4.0EC001031
ETIM 5.0EC001031
ETIM 6.0EC001031
ETIM 7.0EC001031
Back to top

UNSPSC

UNSPSC 6.0131261501
UNSPSC 7.090131261501
UNSPSC 1131261501
UNSPSC 12.0131261501
UNSPSC 13.231261501
UNSPSC 18.031261501
UNSPSC 19.031261501
UNSPSC 20.031261501
UNSPSC 21.031261501
Back to top

ETIM for 1126202 Low-voltage industrial controls and switchgear (EC002779)
Feature Name Feature Value
Type of enclosure (EF003086) Closed
Housing connectable (EF003088) No
Suitable for rail mounting (EF003972) No
Wall mounting possible (EF003973) No
With integrated PCB-mounting connection system (EF003087) No
Surface finishing (EF006569) Other
Colour (EF000007) Grey
RAL-number (EF000116) 7035
Width (EF000008) 161.6 mm
Height (EF000040) 89.7 mm
Depth (EF000049) 54.85 mm
