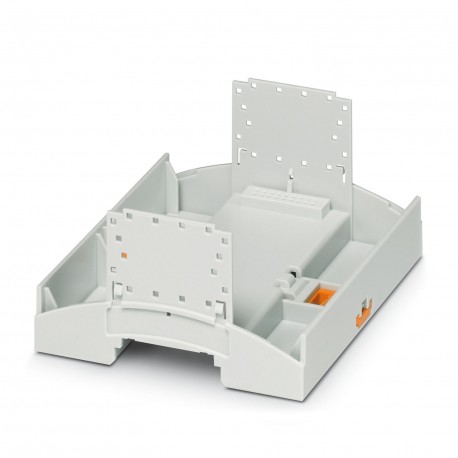

PHOENIX CONTACT BC 107,6 UT HBUS KMGY BC 107,6 UT HBUS KMGY 2202951 PHOENIX CONTACT Electronic housing View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BC 107,6 UT HBUS KMGY 2202951 PHOENIX CONTACT Electronic housing

BC 107,6 UT HBUS KMGY

2202951

PHOENIX CONTACT

10 Pcs.

Electronic housing Rail box for use in installation distributors according to DIN 43880, Lower part of the housing with base anchorage, width: 107.6 mm, height: 89.7 mm, depth: 48.9 mm, colour: light grey (7035), cross bridge: Rail bus connector (optional), number of cross connector poles: 16 DIN rail housing for use in distribution boards in accordance with DIN 43880, Lower housing part with base latch, width: 107.6 mm, height: 89.7 mm, depth: 48.9 mm, color: light gray (similar RAL 7035), cross connection: DIN rail connector (optional), number of positions cross connector: 16

Automation > Extruded profile modular housing
Housing (HS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
Assembly noteRefer to the data sheet for the range in the download area.
Product properties
Product typeEnclosure bottom part
Housing typeDIN rail housing for use in distribution boards in accordance with DIN 43880
Housing seriesBC
Product familyBC 107,6..
Max. number of positions0)
TypeLower housing part with base latch
Ventilation openings presentno
Data management status
Article revision04
Dimensions
Dimensional drawingjsjzwbznni.jpg
Width107.6 mm
Height89.7 mm
Depth48.9 mm
Horizontal pitch6 Div.
PCB design
PCB thickness1.4 mm ... 1.8 mm
Material specifications
Color (Housing)light gray (RAL 7035)
Flammability rating according to UL 94V0
CTI according to IEC 60112
Housing materialPolycarbonate
Surface characteristicsuntreated
Environmental and real-life conditions
Power dissipation single housing for 20 °C
Ambient temperature20 °C
Reduction factor1
Mounting positionvertical
Power dissipation13.08 W
Power dissipation single housing for 30 °C
Ambient temperature30 °C
Reduction factor0.84
Mounting positionvertical
Power dissipation11 W
Power dissipation single housing for 40 °C
Ambient temperature40 °C
Reduction factor0.72
Mounting positionvertical
Power dissipation9.4 W
Power dissipation single housing for 50 °C
Ambient temperature50 °C
Reduction factor0.6
Mounting positionvertical
Power dissipation7.85 W
Power dissipation single housing for 60 °C
Ambient temperature60 °C
Reduction factor0.48
Mounting positionvertical
Power dissipation6.3 W
Power dissipation single housing for 70 °C
Ambient temperature70 °C
Reduction factor0.38
Mounting positionvertical
Power dissipation5 W
Vibration test
SpecificationIEC 60068-2-6:2007-12
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.15 mm (10 Hz ... 58.1 Hz)
Acceleration2g (58.1 Hz ... 150 Hz)
Test duration per axis2.5 h
Test directionsX-, Y- and Z-axis
Glow-wire test
SpecificationIEC 60695-2-11:2014-02
Temperature850 °C
Time of exposure30 s
Mechanical strength / tumbling barrel
SpecificationIEC 60068-2-31:2008-05
Height of fall50 cm
Frequency50
Shocks
SpecificationIEC 60068-2-27:2008-02
Pulse shapeHalf-sine
Acceleration15g
Shock duration11 ms
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)
Test for substances that would hinder coating with paint or varnish
SpecificationVDMA 24364:2018-05
ResultTest passed
Degree of protection (IP code)
SpecificationIEC 60529:1989-11 + AMD 1:1999-11 + AMD 2:2013-08
Result, degree of protection, IP codeIP20
Ambient conditions
Max. IP code to attainIP20
Ambient temperature (operation)-40 °C ... 105 °C (depending on power dissipation)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Relative humidity (storage/transport)95 %
PCB data
Number of PCB holders9
Type of PCB mountLatching
Thickness of the PCB1.4 mm ... 1.8 mm
Mounting
Mounting typeDIN rail mounting/wall mounting
Packaging specifications
Type of packagingpacked in cardboard
Outer packaging typeCarton

ETIM for 2202951 Low-voltage industrial controls and switchgear (EC002779)
Feature Name Feature Value
Type of enclosure (EF003086) Closed
Housing connectable (EF003088) No
Material (EF002169) Other
Surface finishing (EF006569) Other
Colour (EF000007) Grey
RAL-number (EF000116) 7035
Width (EF000008) 107.6 mm
Height (EF000040) 89.7 mm
Depth (EF000049) 48.9 mm
