View larger
Images are for illustrative purposes only. Please refer to data sheet for details

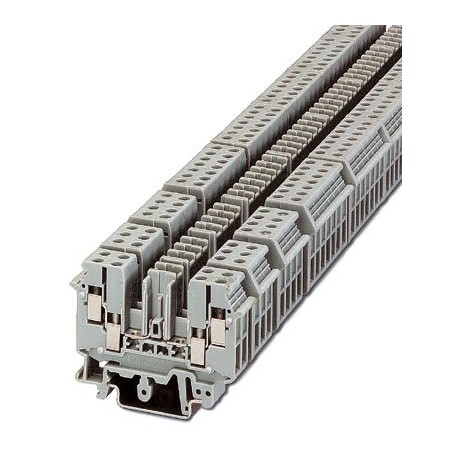

UDK-RELG 4 2777056 PHOENIX CONTACT Basic terminal block
UDK-RELG 4
2777056
PHOENIX CONTACT
10 Pcs.
Basic terminal block
Base terminal blocks with test socket on both sides and double connections of equal potential for NS 32 and NS 35/7.5 rails, with end cap, for ST-REL..., ST-OV... and ST-OE..., 4-pole
Automation > Relay socket
Industrial Relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2777056 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 449 (C-5-2017) |
| GTIN | 4017918068646 |
| Weight per Piece (excluding packing) | 60.740 g |
| Custom tariff number | 85366990 |
| Country of origin | TR (Turkey) |
General
| Number of positions | 4 |
|---|---|
| Nominal voltage UN | 400 V (voltage is determined by the coupling connector.) |
| Nominal current IN | 16 A (current is determined by the coupling connector.) |
| Color | gray |
| Insulating material | PA |
Connection data
| Conductor cross section solid min. | 0.2 mm² |
|---|---|
| Conductor cross section solid max. | 4 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 4 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 12 |
| Connection method | Screw connection |
| Stripping length | 7 mm |
| Screw thread | M3 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 5.027371603eCl@ss 5.127371600eCl@ss 6.027371600eCl@ss 7.027371603eCl@ss 8.027371603eCl@ss 9.027371603
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Other |
| Mounting method (EF000003) | Other |
| With detachable clamps (EF003340) | No |
| Function extension possible (EF003444) | No |
| Width (EF000008) | 27 mm |
| Height (EF000040) | 63.6 mm |
| Depth (EF000049) | 113 mm |
