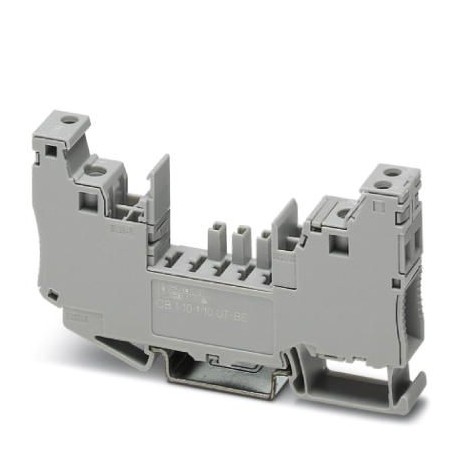

PHOENIX CONTACT CB 1/10-1/10 UT-BE CB 1/10-1/10 UT-BE 2801305 PHOENIX CONTACT Base element View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CB 1/10-1/10 UT-BE 2801305 PHOENIX CONTACT Base element

CB 1/10-1/10 UT-BE

2801305

PHOENIX CONTACT

10 Pcs.

Base element Base element with screw connection technology for CB apparatus protection switch ...

Automation > Device circuit breaker
Over Current Protection

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2801305
Packing unit10 pc
Minimum order quantity10 pc
Catalog pagePage 331 (C-4-2017)
GTIN4046356769198
Weight per Piece (excluding packing)39.420 g
Custom tariff number85366990
Country of originID (Indonesia)

Dimensions

Height90.8 mm
Width12.3 mm
Depth70 mm

Ambient conditions

Ambient temperature (operation)-30 °C ... 60 °C
Degree of protectionIP30 (Actuation area)

General

Flammability rating according to UL 94V0
Mounting typeDIN rail: 35 mm
Colorgray
TypeBase element, DIN rail mounting

Electrical data

Nominal voltage UN277 V
Rated surge voltage2.5 kV
Rated voltage277 V (AC)
80 V (DC)
Rated current IN16 A
Rated insulation voltage Ui277 V AC
Insertion/withdrawal cycles100

Connection data

Connection nameConnection 1
Connection methodScrew connection
Stripping length10 mm
Conductor cross section flexible min.0.5 mm²
Conductor cross section flexible max.16 mm²
Conductor cross section solid min.0.5 mm²
Conductor cross section solid max.16 mm²
Conductor cross section AWG min.20
Conductor cross section AWG max.6
Connection nameConnection 2
Connection methodScrew connection
Stripping length10 mm
Conductor cross section flexible min.0.5 mm²
Conductor cross section flexible max.16 mm²
Conductor cross section solid min.0.5 mm²
Conductor cross section solid max.16 mm²
Conductor cross section AWG min.20
Conductor cross section AWG max.6
Connection nameConnection 12/11/14
Connection methodScrew connection
Stripping length9 mm
Conductor cross section flexible min.0.14 mm²
Conductor cross section flexible max.4 mm²
Conductor cross section solid min.0.14 mm²
Conductor cross section solid max.4 mm²
Conductor cross section AWG min.26
Conductor cross section AWG max.16

Standards and Regulations

Standards/specificationsUL 1059

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2801305 Circuit breakers and fuses (EC003538)
Feature Name Feature Value
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 12.3 mm
Height (EF000040) 90.8 mm
Depth (EF000049) 70 mm
Mounting method (EF000003) Other
Operating voltage (EF000111) 277 V
Nominal current (EF000001) 16 A
Active current limitation x IN (EF011922) 0
With remote signalling contact (EF000422) Yes
Ambient temperature during operating (EF007515) -30 °C
