View larger
Images are for illustrative purposes only. Please refer to data sheet for details

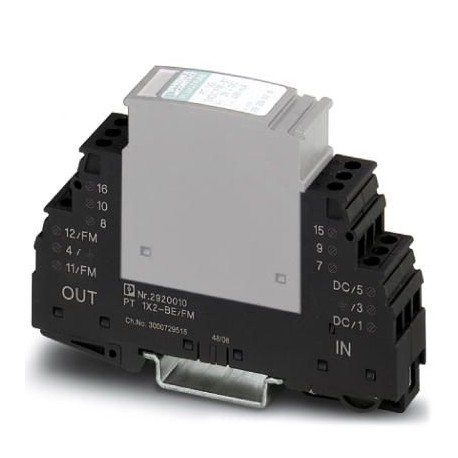

PT 1X2-BE/FM 2920010 PHOENIX CONTACT Type 2 surge protection base element
PT 1X2-BE/FM
2920010
PHOENIX CONTACT
1 Pcs.
Type 2 surge protection base element
Base element for housing a plug-in protection with status indication for a two-wire circuit without earth potential
Automation > Surge protection device for data networks/MCR-technology
Trabtech (TT)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2920010 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 90 (TT-2011) |
| GTIN | 4046356154024 |
| Weight per Piece (excluding packing) | 51.060 g |
| Custom tariff number | 85371098 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Dimensions
| Height | 89.8 mm |
|---|---|
| Width | 17.7 mm |
| Depth | 52 mm |
| Horizontal pitch | 1 Div. |
| Complete module height | 90 mm |
| Complete module width | 17.7 mm |
| Complete module depth | 65.5 mm |
General
| Flammability rating according to UL 94 | V-0 |
|---|---|
| Color | black |
| Mounting type | DIN rail: 35 mm |
| Type | Base element, DIN rail mounting |
| Number of positions | 2 |
| Direction of action | Shield-Earth Ground |
Connection data
| Connection method | Screw connection |
|---|---|
| Connection method IN | Screw terminal blocks |
| Connection method OUT | Screw terminal blocks |
| Screw thread | M3 |
| Tightening torque | 0.8 Nm |
| Stripping length | 8 mm |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 12 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
