View larger
Images are for illustrative purposes only. Please refer to data sheet for details

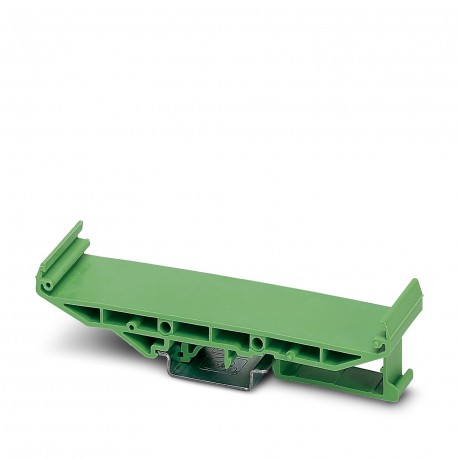

UM-BEFE 35-1 2956660 PHOENIX CONTACT Basic housing
UM-BEFE 35-1
2956660
PHOENIX CONTACT
10 Pcs.
Basic housing
Base element with fixing foot, for mounting on NS 32 rail or NS 35/7.5 rail, without ribs, L = 35 mm
Base element with snap-on foot, for mounting on NS 32 or NS 35/7.5 DIN rail, without ribs, L = 35 mm
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Component housing lower part |
| Housing type | Press-drawn section housings |
| Housing series | UM |
| Product family | UM BE |
| Type | Plug-in module base element |
| Ventilation openings present | no |
| Data management status | |
| Article revision | 02 |
Dimensions
| Width | 35 mm |
| Height | 111 mm |
| Depth | 27.7 mm |
Material specifications
| Color (Housing) | green (RAL 6021) |
| Housing material | Polyamide |
| Surface characteristics | untreated |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Relative humidity (storage/transport) | 80 % |
Mounting
| Mounting type | DIN rail mounting |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Closed |
| Housing connectable (EF003088) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Green |
| RAL-number (EF000116) | 6021 |
| Width (EF000008) | 35 mm |
| Height (EF000040) | 111 mm |
| Depth (EF000049) | 27.7 mm |
