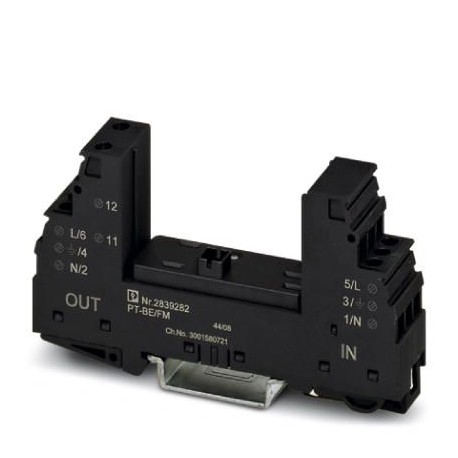

PT-BE/FM 2839282 PHOENIX CONTACT Type 3 surge protection base element
PT-BE/FM
2839282
PHOENIX CONTACT
1 Pcs.
Type 3 surge protection base element
Base element for PT plug-in protection, mounting on NS 35/7.5 and NS 35/15, housing width: 17.5 mm
Automation > Surge protection device for data networks/MCR-technology
Trabtech (TT)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2839282 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 114 (C-4-2017) |
| GTIN | 4017918182502 |
| Weight per Piece (excluding packing) | 45.910 g |
| Custom tariff number | 85363010 |
| Country of origin | DE (Germany) |
Dimensions
| Height | 90 mm |
|---|---|
| Width | 17.7 mm |
| Depth | 51.2 mm |
| Horizontal pitch | 1 Div. |
| Complete module height | 90 mm |
| Complete module width | 17.7 mm |
| Complete module depth | 65.5 mm |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -40 °C ... 80 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | ≤ 2000 m (amsl (above mean sea level)) |
| Permissible humidity (operation) | 5 % ... 95 % |
| Shock (operation) | 30g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z) |
| Vibration (operation) | 5g (10 ... 150 Hz/20 cycles/axis/X, Y, Z) |
General
| EN type | T3 |
|---|---|
| Number of ports | One |
| Mounting type | DIN rail: 35 mm |
| Color | jet black RAL 9005 |
| Housing material | PA 6.6-FR |
| Degree of pollution | 2 |
| Flammability rating according to UL 94 | V-0 |
| Type | Base element, DIN rail mounting |
| Number of positions | 3 |
| Surge protection fault message | Remote indication contact |
Protective circuit
| Nominal voltage UN | 230 V AC (TN-S) |
|---|---|
| 230 V AC (TT) | |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Maximum continuous voltage UC | 264 V AC |
| Rated load current IL | 26 A (30 °C) |
| Short-circuit current rating ISCCR | 1.5 kA AC |
| Max. backup fuse with branch wiring | depends on the plug used |
| Maximum backup fuse for through wiring | 25 A (gG / B / C) |
Indicator/remote signaling
| Switching function | N/C contact |
|---|---|
| Connection method | Screw connection |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Screw thread | M3 |
| Tightening torque | 0.8 Nm |
| Stripping length | 8 mm |
Connection data
| Connection method | Screw connection |
|---|---|
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Screw thread | M3 |
| Tightening torque | 0.8 Nm |
| Stripping length | 8 mm |
UL specifications
| SPD Type | ACC |
|---|---|
| Nominal voltage | 240 V DC |
| Rated load current IL | 20 A |
| Power distribution system | Split phase |
| Nominal frequency | 50/60 Hz |
UL indicator/remote signaling
| Tightening torque | 5 lbf-in. ... 7 lbf-in. |
|---|---|
| Conductor cross section AWG | 14 ... 12 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
