View larger
Images are for illustrative purposes only. Please refer to data sheet for details

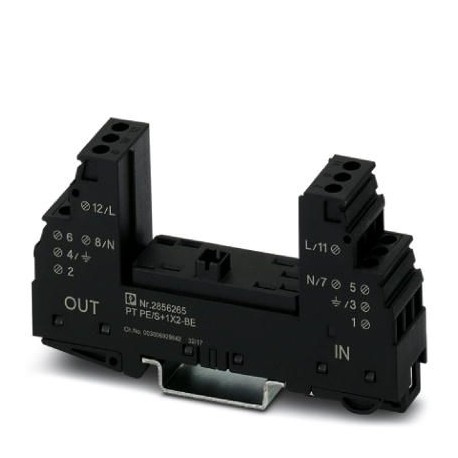

PT PE/S+1X2-BE 2856265 PHOENIX CONTACT Surge protection base element
PT PE/S+1X2-BE
2856265
PHOENIX CONTACT
1 Pcs.
Surge protection base element
PT plug-in protection base element with surge protection for power supply and a 2-conductor signal circuit without earth potential, rail mounting NS 35/7.5 and NS 35/15, housing width: 17.5 mm
Automation > Accessories/spare parts for surge protection data networks/MCR-technology
Trabtech (TT)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2856265 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 99 (C-4-2017) |
| GTIN | 4017918819675 |
| Weight per Piece (excluding packing) | 45.730 g |
| Custom tariff number | 85363010 |
| Country of origin | DE (Germany) |
Dimensions
| Height | 90 mm |
|---|---|
| Width | 17.7 mm |
| Depth | 52 mm |
| Horizontal pitch | 1 Div. |
| Complete module height | 90 mm |
| Complete module width | 17.7 mm |
| Complete module depth | 65.5 mm |
General
| Flammability rating according to UL 94 | V-0 |
|---|---|
| Color | black |
| Mounting type | DIN rail: 35 mm |
| Type | DIN rail module, two-section, divisible |
| Number of positions | 2 |
Connection (protective circuit, power supply)
| Connection method | Screw connection |
|---|---|
| Connection method IN | Screw terminal blocks |
| Connection method OUT | Screw terminal blocks |
| Screw thread | M3 |
| Stripping length | 8 mm |
Power supply, general
| Connection method | Screw connection |
|---|---|
| Connection method IN | Screw terminal blocks |
| Connection method OUT | Screw terminal blocks |
| Screw thread | M3 |
| Stripping length | 8 mm |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
