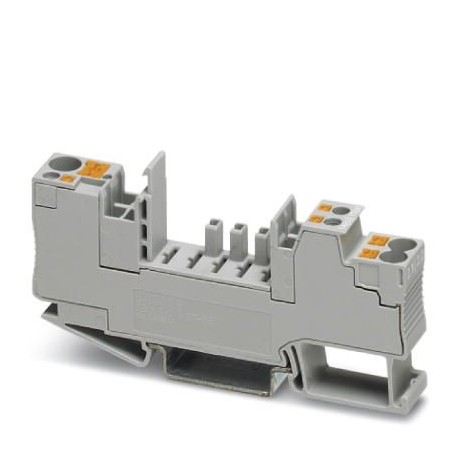

CB 1/6-2/4 PT-BE 2800929 PHOENIX CONTACT Base element
CB 1/6-2/4 PT-BE
2800929
PHOENIX CONTACT
10 Pcs.
Base element
Base element for CB device protection switch with push-in connection technology
Automation > Device circuit breaker
Over Current Protection
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2800929 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 331 (C-4-2017) |
| GTIN | 4046356690638 |
| Weight per Piece (excluding packing) | 33.150 g |
| Custom tariff number | 85366990 |
| Country of origin | PL (Poland) |
Ambient conditions
| Ambient temperature (operation) | -30 °C ... 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 120 °C |
| Degree of protection | IP30 (Actuation area) |
General
| Flammability rating according to UL 94 | V0 |
|---|---|
| Mounting type | DIN rail: 35 mm |
| Color | gray |
| Overvoltage category_GRP | III |
| Insulating material group | I |
| Degree of pollution | 3 |
| Type | Base element, DIN rail mounting |
Electrical data
| Nominal voltage UN | 300 V |
|---|---|
| Rated surge voltage | 4 kV |
| Rated insulation voltage Ui | 250 V |
| Insertion/withdrawal cycles | 100 |
Connection data
| Connection name | Connection 1 |
|---|---|
| Connection method | Push-in connection |
| Stripping length | 12 mm |
| Conductor cross section flexible min. | 0.5 mm² |
| Conductor cross section flexible max. | 6 mm² |
| Conductor cross section solid min. | 0.5 mm² |
| Conductor cross section solid max. | 6 mm² |
| Conductor cross section AWG min. | 20 |
| Conductor cross section AWG max. | 10 |
| Connection name | Connection 2.1/2.2 |
| Connection method | Push-in connection |
| Stripping length | 12 mm |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 4 mm² |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 6 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 10 |
| Connection name | Connection 12/11/14 |
| Connection method | Push-in connection |
| Stripping length | 8 mm |
| Conductor cross section flexible min. | 0.14 mm² |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section solid min. | 0.14 mm² |
| Conductor cross section solid max. | 1.5 mm² |
| Conductor cross section AWG min. | 26 |
| Conductor cross section AWG max. | 16 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027141116eCl@ss 4.127141116eCl@ss 5.027141116eCl@ss 5.127141100eCl@ss 6.027141100eCl@ss 7.027141116eCl@ss 8.027141116eCl@ss 9.027141116
| Feature Name | Feature Value |
|---|---|
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Width (EF000008) | 12.3 mm |
| Height (EF000040) | 90 mm |
| Depth (EF000049) | 46.7 mm |
| Mounting method (EF000003) | Other |
| Active current limitation x IN (EF011922) | 0 |
| With remote signalling contact (EF000422) | Yes |
| Ambient temperature during operating (EF007515) | -30 °C |
