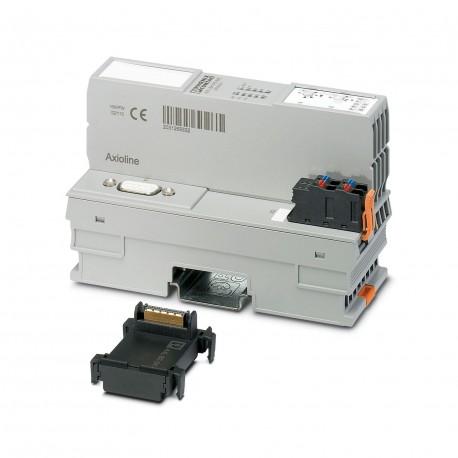

PHOENIX CONTACT AXL F BK PB XC AXL F BK PB XC 2702463 PHOENIX CONTACT Bus coupler View larger
Images are for illustrative purposes only. Please refer to data sheet for details

AXL F BK PB XC 2702463 PHOENIX CONTACT Bus coupler

AXL F BK PB XC

2702463

PHOENIX CONTACT

1 Pcs.

Bus coupler AxiolineF, Bus coupler, PROFIBUS DP, D-SUB-9 female connector, Extreme Condition variant, transmission speed on local bus:100 MBit/s, protection rating: IP20, including bus base module and AxiolineF connector Axioline F, Bus coupler, PROFIBUS DP, 9-pin D-SUB socket, Variant for extreme conditions:, transmission rate in local bus: 100 Mbit/s, degree of protection: IP20, including bus base module and Axioline F connector

Automation > Fieldbus, decentr. periphery - communication module
I/O

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2702463
Packing unit1 pc
GTIN4055626459271
Weight per Piece (excluding packing)175.000 g
Custom tariff number85389091
Country of originDE (Germany)

Dimensions

Dimensional drawing
Width45 mm
Height125.9 mm
Depth74 mm
Note on dimensionsThe depth is valid when a TH 35-7,5 DIN rail is used (according to EN 60715).

Ambient conditions

Ambient temperature (operation)-25 °C ... 60 °C (Mounting position: wall mounting on horizontal DIN rail)
-25 °C ... 55 °C (Standard; mounting position: any)
-40 °C ... 70 °C (Extended, see section “Tested successfully: use under extreme ambient conditions” in the data sheet.)
Ambient temperature (storage/transport)-40 °C ... 85 °C
Permissible humidity (operation)5 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)5 % ... 95 % (non-condensing)
Air pressure (operation)70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)70 kPa ... 106 kPa (up to 3000 m above sea level)
Degree of protectionIP20

Connection data

DesignationAxioline F connector
Connection methodPush-in connection
Note on the connection methodPlease observe the information provided on conductor cross sections in the “Axioline F: system and installation” user manual.
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.1.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.1.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.16
Stripping length8 mm

General

Mounting typeDIN rail
Net weight175 g
Note on weight specificationswith connector and bus base module
Diagnostics messagesDiagnostic alarms

Interfaces

DesignationPROFIBUS DP
No. of channels1
Connection methodD-SUB-9 female connector
Transmission speed9.6 kbps ... 12 Mbps
Number of positions9
DesignationAxioline F local bus
Connection methodBus base module
Transmission speed100 Mbps
DesignationService
Connection methodMicro USB type B

System limits of the bus coupler

DesignationSystem limits of the bus coupler
Amount of process datamax. 488 Byte (per station)
max. 244 Byte (Input)
max. 244 Byte (Output)
Number of parameter datamax. 244 Byte
Number of configuration datamax. 244 Byte
Number of supported devicesmax. 63 (per station)
Number of local bus devices that can be connectedmax. 63

Axioline potentials

DesignationCommunications power ULfeed-in (the supply of the Axioline F local bus UBusis generated from UL)
Supply voltage24 V DC
Supply voltage range19.2 V DC ... 30 V DC (including all tolerances, including ripple)
Current consumptionmax. 567 mA (with 2 A at UBusfor the I/Os and UL= 24 V)
Power consumptionmax. 13.7 W (with 2 A load at UBusfor the I/Os)
DesignationAxioline F local bus supply (UBus)
Supply voltage5 V DC (via bus base module)
Power supply unit2 A
Type of protectionSurge protection of the supply voltage
Polarity reversal protection of the supply voltage

Standards and Regulations

Mechanical testsVibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g
Shock in acc. with EN 60068-2-27/IEC 60068-2-27 30g, 11 ms period, half-sine shock pulse
Continuous shock according to EN 60068-2-27/IEC 60068-2-27 10g
Protection classIII, IEC 61140, EN 61140, VDE 0140-1

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 2702463 PLC's (EC001604)
Feature Name Feature Value
Supply voltage DC (EF007534) 19.2 V
Voltage type (supply voltage) (EF002991) DC
Supporting protocol for EtherCAT (EF017564) No
Supporting protocol for EtherNet/IP (EF007521) No
Radio standard Bluetooth (EF007178) No
Radio standard WLAN 802.11 (EF007179) No
Radio standard GPRS (EF008523) No
IO link master (EF007298) No
System accessory (EF004118) Yes
Degree of protection (IP) (EF005474) IP20
With potential separation (EF003272) No
Fieldbus connection over separate bus coupler possible (EF004002) Yes
Suitable for rail mounting (EF003972) Yes
Wall mounting/direct mounting (EF007020) No
Front built-in possible (EF007016) No
Rack-assembly possible (EF007018) No
Suitable for safety functions (EF001597) No
Performance level according to EN ISO 13849-1 (EF007399) None
Appendant operation agent (Ex ia) (EF004141) No
Appendant operation agent (Ex ib) (EF004142) No
Explosion safety category for gas (EF003997) None
Explosion safety category for dust (EF003998) None
Width (EF000008) 45 mm
Height (EF000040) 125.893514 mm
Depth (EF000049) 74.25 mm
