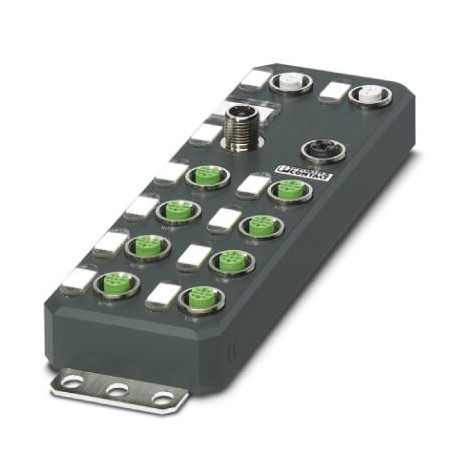

PHOENIX CONTACT AXL E EIP DI16 M12 6P AXL E EIP DI16 M12 6P 2701493 PHOENIX CONTACT Distributed I/O device View larger
Images are for illustrative purposes only. Please refer to data sheet for details

AXL E EIP DI16 M12 6P 2701493 PHOENIX CONTACT Distributed I/O device

AXL E EIP DI16 M12 6P

2701493

PHOENIX CONTACT

1 Pcs.

Distributed I/O device AxiolineE, Digital input equipment, EtherNet/IP™, M12 quick connection technology, Digital inputs: 16, 24 VDC, connection technology: 4 conductors, Plastic housing, protection index: IP65/IP67

Automation > Fieldbus, decentr. periphery - digital I/O module
I/O

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2701493
Packing unit1 pc
Catalog pagePage 194 (C-6-2017)
GTIN4046356763479
Weight per Piece (excluding packing)547.000 g
Custom tariff number85176200
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Dimensional drawing
Width60 mm
Height185 mm
Depth30.5 mm
Note on dimensionsThe height is 212 mm including fixing clips.
Drill hole spacing198.5 mm

Ambient conditions

Ambient temperature (operation)-25 °C ... 60 °C
Ambient temperature (storage/transport)-25 °C ... 85 °C
Permissible humidity (operation)5 % ... 95 %
Permissible humidity (storage/transport)5 % ... 95 %
Air pressure (operation)70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)70 kPa ... 106 kPa (up to 3000 m above sea level)
Degree of protectionIP65/IP67

General

Housing materialPocan®
Mounting typeWall mounting
Net weight547 g

Interfaces

DesignationEtherNet/IP™
No. of channels2
Connection methodM12 fast connection technology
Note on the connection methodD-coded
Designation connection pointCopper cable
Transmission speed10/100 Mbps (with auto negotiation)
Number of positions4

System limits of the bus coupler

DesignationEtherNet/IP™
Equipment typeEtherNet/IP™ slave
System-specific protocolsEtherNet/IP™ protocols ACD
EtherNet/IP™ protocols DLR
EtherNet/IP™ protocols IGMP v2
Protocols supportedSNMP v1
HTTP
TFTP
FTP
BootP
DHCP
SpecificationCIP Edition 3.11
EIP adaptation of CIP 1.12

Supply

DesignationModule electronics and sensors (US)
Connection methodM12 connector (T-coded)
Number of positions4
Supply voltage24 V DC
Nominal supply voltage range18 V DC ... 31.2 V DC (including all tolerances, including ripple)
Current consumptiontyp. 190 mA ±15 % (at 24 V DC)
DesignationActuators (UA) for additional devices
Connection methodM12 connector (T-coded)
Number of positions4
Supply voltage24 V DC
Nominal supply voltage range18 V DC ... 31.2 V DC (including all tolerances, including ripple)
Current consumptiontyp. 3 mA ±15 % (at 24 V DC)

Digital inputs

Input nameDigital inputs
Description of the inputEN 61131-2 types 1 and 3
Connection methodM12 connector, double occupancy
Connection technology4-wire
Number of inputs16
Type of protectionOverload protection, short-circuit protection of sensor supply
Input filter time< 1000 µs
Input voltage range "0" signal0 V ... 5 V DC
Input voltage range "1" signal11 V DC ... 30 V DC
Nominal input current at UINtyp. 3 mA

Electrical isolation

Test section24 V supply (communications power and sensor supply, digital inputs)/bus connection (Ethernet 1) 500 V AC 50 Hz 1 min.
24 V supply (communications power and sensor supply, digital inputs)/bus connection (Ethernet 2) 500 V AC 50 Hz 1 min.
24 V supply (communications power and sensor supply, digital inputs)/FE 500 V AC 50 Hz 1 min.
Bus connection (Ethernet 1)/FE 500 V AC 50 Hz 1 min.
Bus connection (Ethernet 2)/FE 500 V AC 50 Hz 1 min.
Bus connection (Ethernet 1)/bus connection (Ethernet 2) 500 V AC 50 Hz 1 min.
24 V supply (actuator supply)/24 V supply (communications power and sensor supply, digital inputs) 500 V AC 50 Hz 1 min.
24 V supply (actuator supply)/bus connection (Ethernet 1) 500 V AC 50 Hz 1 min.
24 V supply (actuator supply)/bus connection (Ethernet 2) 500 V AC 50 Hz 1 min.
24 V supply (actuator supply)/FE 500 V AC 50 Hz 1 min.

Standards and Regulations

Mechanical testsVibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g
Shock in acc. with EN 60068-2-27/IEC 60068-2-27 30g, 11 ms period, half-sine shock pulse
Continuous shock according to EN 60068-2-27/IEC 60068-2-27 10g
Protection classIII, IEC 61140, EN 61140, VDE 0140-1

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 25;
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2701493 PLC's (EC001599)
Feature Name Feature Value
Voltage type (supply voltage) (EF002991) DC
Number of digital inputs (EF001992) 16
Number of digital outputs (EF001993) 0
Digital inputs configurable (EF008516) No
Digital outputs configurable (EF008520) No
Input current at signal 1 (EF001428) 0.003 mA
Permitted voltage at input (EF007554) 0 V
Type of voltage (input voltage) (EF003033) DC
Type of digital output (EF003601) None
Short-circuit protection, outputs available (EF003203) No
Number of HW-interfaces industrial Ethernet (EF003020) 0
Number of interfaces PROFINET (EF006932) 0
Number of HW-interfaces RS-232 (EF003021) 0
Number of HW-interfaces RS-422 (EF003022) 0
Number of HW-interfaces RS-485 (EF003023) 0
Number of HW-interfaces serial TTY (EF003024) 0
Number of HW-interfaces parallel (EF003026) 0
Number of HW-interfaces wireless (EF006933) 0
Number of HW-interfaces USB (EF003025) 0
Number of HW-interfaces other (EF003027) 0
With optical interface (EF003028) No
Supporting protocol for EtherCAT (EF017564) No
Supporting protocol for TCP/IP (EF003050) No
Supporting protocol for PROFIBUS (EF003052) No
Supporting protocol for CAN (EF003053) No
Supporting protocol for INTERBUS (EF003054) No
Supporting protocol for ASI (EF003051) No
Supporting protocol for KNX (EF003055) No
Supporting protocol for Modbus (EF003057) No
Supporting protocol for Data-Highway (EF003058) No
Supporting protocol for DeviceNet (EF003059) No
Supporting protocol for SUCONET (EF003060) No
Supporting protocol for LON (EF003017) No
Supporting protocol for PROFINET IO (EF007525) No
Supporting protocol for PROFINET CBA (EF007524) No
Supporting protocol for SERCOS (EF006657) No
Supporting protocol for Foundation Fieldbus (EF007522) No
Supporting protocol for EtherNet/IP (EF007521) Yes
Supporting protocol for AS-Interface Safety at Work (EF007519) No
Supporting protocol for DeviceNet Safety (EF007520) No
Supporting protocol for INTERBUS-Safety (EF006662) No
Supporting protocol for PROFIsafe (EF007526) No
Supporting protocol for SafetyBUS p (EF007527) No
Supporting protocol for other bus systems (EF003062) No
Radio standard Bluetooth (EF007178) No
Radio standard WLAN 802.11 (EF007179) No
Radio standard GPRS (EF008523) No
Radio standard GSM (EF008524) No
Radio standard UMTS (EF008525) No
IO link master (EF007298) No
System accessory (EF004118) Yes
Degree of protection (IP) (EF005474) IP65/IP67
Time delay at signal change (EF002382) 0 ms
Fieldbus connection over separate bus coupler possible (EF004002) Yes
Suitable for rail mounting (EF003972) No
Wall mounting/direct mounting (EF007020) No
Front built-in possible (EF007016) No
Rack-assembly possible (EF007018) No
Suitable for safety functions (EF001597) No
SIL according to IEC 61508 (EF009889) None
Performance level according to EN ISO 13849-1 (EF007399) None
Appendant operation agent (Ex ia) (EF004141) No
Appendant operation agent (Ex ib) (EF004142) No
Explosion safety category for gas (EF003997) None
Explosion safety category for dust (EF003998) None
