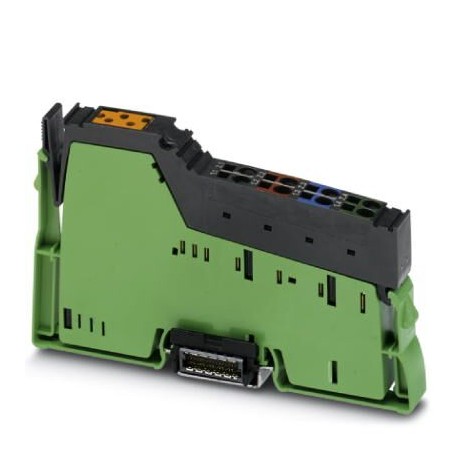

PHOENIX CONTACT AXC F IL ADAPT AXC F IL ADAPT 1020304 PHOENIX CONTACT Right-alignable Inline adapter terminal (INTERBUS master) for one PLC.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

AXC F IL ADAPT 1020304 PHOENIX CONTACT Right-alignable Inline adapter terminal (INTERBUS master) for one PLC..

AXC F IL ADAPT

1020304

PHOENIX CONTACT

1 Pcs.

Right-alignable Inline adapter terminal (INTERBUS master) for one PLCnext Control device for setting up a PLCnext Technology Inline station Right-alignable Inline adapter terminal block (INTERBUS master) for a PLCnext Control to create an Inline station for PLCnext Technology

Automation > Fieldbus, decentr. periphery - communication module
Control Systems (CST)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1020304
Packing unit1 pc
Catalog pagePage 12 (C-6-2019)
GTIN4055626510088
Weight per Piece (excluding packing)120.000 g
Custom tariff number85389099
Country of originDE (Germany)

Drawings

Dimensional drawing

Dimensional drawing

Back to top

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area
Back to top

Dimensions

Dimensional drawing
Width12.2 mm
Height119.8 mm
Depth71.5 mm
Back to top

Ambient conditions

Ambient temperature (operation)-25 °C ... 55 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Permissible humidity (operation)10 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)10 % ... 95 % (non-condensing)
Air pressure (operation)70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)10 kPa ... 106 kPa (up to 3000 m above sea level)
Degree of protectionIP20
Back to top

Connection data

DesignationInline connector
Connection methodSpring-cage connection
Conductor cross section solid min.0.08 mm²
Conductor cross section solid max.1.5 mm²
Conductor cross section flexible min.0.08 mm²
Conductor cross section flexible max.1.5 mm²
Conductor cross section AWG min.28
Conductor cross section AWG max.16
Stripping length8 mm
Back to top

General

Mounting typeDIN rail mounting
Net weight66 g
Diagnostics messagesBus error in INTERBUS Yes
Peripheral fault in INTERBUS Yes
Mounting typeDIN rail mounting
Back to top

Data interfaces

InterfaceINTERBUS local bus (master)
Number1
Connection methodInline data jumper
Back to top

Power supply for module electronics

Supply voltage range
Current consumption20 mA
Back to top

Inline potentials

Designation24 V supply UILC
Supply voltage24 V DC -15 % / +20 % (acc. to EN 61131-2)
Current consumption20 mA
Designation7.5 V communications power UL(potential jumper)
Supply voltage7.5 V DC ±5 %
Power supply unitmax. 0.8 A DC (observe derating)
Designation24 V analog supply UANA(potential jumper)
Supply voltage24 V DC -15 % / +20 %
Supply voltage range19.2 V DC ... 30 V DC (including all tolerances, including ripple)
Power supply unit0.5 A DC (observe derating)
Designation24 V main supply UM
Supply voltage24 V DC -15 % / +20 % (acc. to EN 61131-2)
Supply voltage range19.2 V DC ... 30 V DC (including all tolerances, including ripple)
Power supply unitmax. 8 A DC (sum of UM+ US)
Designation24 V segment supply US
Supply voltage24 V DC -15 % / +20 % (in accordance with EN 61131)
Supply voltage range19.2 V DC ... 30 V DC (including all tolerances, including ripple)
Power supply unitmax. 8 A (sum of UM+ US)
Type of protectionPolarity reversal protection of the supply voltage
Transient protection
Back to top

Axioline potentials

Supply voltage24 V DC
Supply voltage range
Back to top

Standards and Regulations

Mechanical testsShock in acc. with EN 60068-2-27/IEC 60068-2-27 30g, 11 ms period, half-sine shock pulse
Continuous shock according to EN 60068-2-27/IEC 60068-2-27 10g
Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g
Back to top

Environmental Product Compliance

REACh SVHC
Lead 7439-92-1
China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Back to top

Classifications

eCl@ss

eCl@ss 6.027242600
eCl@ss 7.027242608
eCl@ss 8.027242608
eCl@ss 9.027242608
Back to top

ETIM

ETIM 5.0EC001604
ETIM 6.0EC001604
ETIM 7.0EC001604
Back to top

ETIM for 1020304 PLC's (EC001604)
Feature Name Feature Value
Supply voltage DC (EF007534) 19.2 V
Voltage type (supply voltage) (EF002991) DC
Radio standard Bluetooth (EF007178) No
Radio standard WLAN 802.11 (EF007179) No
Radio standard GPRS (EF008523) No
IO link master (EF007298) No
System accessory (EF004118) Yes
Degree of protection (IP) (EF005474) IP20
With potential separation (EF003272) No
Fieldbus connection over separate bus coupler possible (EF004002) Yes
Suitable for rail mounting (EF003972) Yes
Wall mounting/direct mounting (EF007020) No
Front built-in possible (EF007016) No
Rack-assembly possible (EF007018) No
Suitable for safety functions (EF001597) No
Performance level according to EN ISO 13849-1 (EF007399) None
Appendant operation agent (Ex ia) (EF004141) No
Appendant operation agent (Ex ib) (EF004142) No
Explosion safety category for gas (EF003997) None
Explosion safety category for dust (EF003998) None
Width (EF000008) 12.15 mm
Height (EF000040) 120.110773 mm
Depth (EF000049) 70.430346 mm
