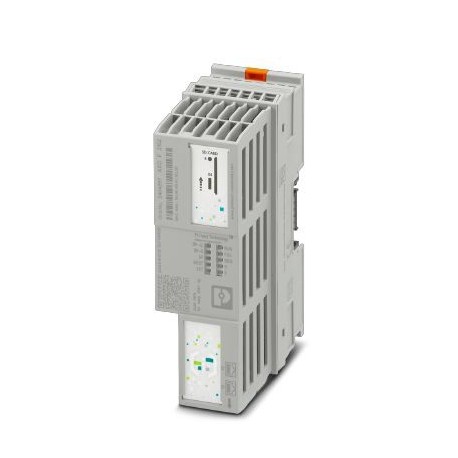

AXC F 2152 2404267 PHOENIX CONTACT Controller

AXC F 2152

2404267

PHOENIX CONTACT

1 Pcs.

Controller PLCnext Control for Axioline F direct I/O control. With two Ethernet interfaces. Complete with connection connector and bus socket module.

Automation > PLC CPU-module
Control Systems (CST)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2404267
Packing unit1 pc
GTIN4055626356280
Weight per Piece (excluding packing)387.000 g
Custom tariff number85371091
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width45 mm
Height126.93 mm
Depth75 mm

Ambient conditions

Degree of protectionIP20
Ambient temperature (operation)-25 °C ... 60 °C up to 2000 m above mean sea level (observe derating)
-25 °C ... 55 °C up to 3000 m above mean sea level (observe derating)
≤ 55 °C (with max. 1 A on UBus)
> 55 °C ... 60 °C (only in conjunction with an Axioline F power module AXL F PWR 1H (order number 2688297))
Ambient temperature (storage/transport)-40 °C ... 85 °C
Permissible humidity (operation)5 % ... 95 % (according to DIN EN 61131-2)
Permissible humidity (storage/transport)5 % ... 95 % (according to DIN EN 61131-2)
Air pressure (operation)70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)58 kPa ... 106 kPa (up to 4500 m above mean sea level)
Shock30g, 11 ms period, half-sine shock pulse, according to IEC 60068-2-27
Vibration (operation)5g

Control system

Engineering toolPLCnext Engineer
Eclipse
Programming languages supportedProgramming in acc. with IEC 61131-3
C++
Manufacturer-specific

General data

ProcessorARM®Cortex®-A9 2x 800 MHz
Operating systemLinux
RAM512 Mbyte DDR3 SDRAM

IEC 61131 runtime system

Engineering toolPLCnext Engineer
Eclipse
Program memory8 Mbyte
Mass storage16 Mbyte
Retentive mass storage48 kByte (NVRAM)
Realtime clockYes

Fieldbus function

Designation
Amount of process datamax. 8192 Bit (per station)
max. 4096 Bit (Input)
max. 4096 Bit (Output)
Number of supported devicesmax. 63 (per station)
Number of local bus devices that can be connectedmax. 63 (observe current consumption)

Data interfaces

InterfaceAxioline F local bus
Number1
Connection methodBus base module
Transmission speed100 Mbps
InterfaceEthernet
Number2
Connection methodRJ45 socket
Transmission speed10/100 Mbps (full duplex)

PROFINET

Device functionPROFINET controller, PROFINET device
SpecificationVersion 2.3
Update ratemin. 1 ms (4 devices)
min. 16 ms (64 devices)

Power supply

Typical current consumption200 mA (without I/Os and UL= 24 V)
Max. current consumption442 mA (with 1 A at UBusfor the I/Os and UL= 24 V)
Supply voltage24 V DC
Supply voltage range19.2 V DC ... 30 V DC

Mechanical design

Weight215 g
Diagnostics displayNo
Controller redundancyNo
Safety functionNo

Standards and Regulations

Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Interference emissionNoise emission test as per EN 61000-6-4 Class A
Immunity to surgeNoise immunity test in accordance with EN 61000-6-2 Transient overvoltage (surge) EN 61000-4-5/IEC 61000-4-5 Criterion B, DC supply lines: ±0.5 kV/±0.5 kV (symmetrical/asymmetrical), fieldbus cable shield: ±1 kV
Immunity to burstNoise immunity test in accordance with EN 61000-6-2 Fast transients (burst) EN 61000-4-4/IEC 61000-4-4 Criterion B, 2 kV
Immunity to EFNoise immunity test in accordance with EN 61000-6-2 Electromagnetic fields EN 61000-4-3/IEC 61000-4-3 Criterion A, Field intensity: 10 V/m
Immunity to ESDNoise immunity test in accordance with EN 61000-6-2 Electrostatic discharge (ESD) EN 61000-4-2/IEC 61000-4-2 Criterion B, 6 kV contact discharge, 8 kV air discharge
Immunity to conducted interferenceNoise immunity test in accordance with EN 61000-6-2 Conducted interference EN 61000-4-6/IEC 61000-4-6 Criterion A; Test voltage 10 V
Vibration (storage/transport)5g
Shock30g, 11 ms period, half-sine shock pulse, according to IEC 60068-2-27
Vibration (operation)5g
Shock (operation)10g (Bump endurance test according to EN 60068-2-29)

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2404267 PLC's (EC000236)
Feature Name Feature Value
Supply voltage DC (EF007534) 19.2 V
Voltage type (supply voltage) (EF002991) DC
Model (EF000010) Modular
Number of HW-interfaces industrial Ethernet (EF003020) 2
Number of interfaces PROFINET (EF006932) 0
Number of HW-interfaces RS-232 (EF003021) 0
Number of HW-interfaces RS-422 (EF003022) 0
Number of HW-interfaces RS-485 (EF003023) 0
Number of HW-interfaces USB (EF003025) 0
Number of HW-interfaces parallel (EF003026) 0
Number of HW-interfaces wireless (EF006933) 0
Number of HW-interfaces other (EF003027) 1
Number of analogue outputs (EF001995) 0
Number of analogue inputs (EF001994) 0
Number of digital inputs (EF001992) 0
Number of digital outputs (EF001993) 0
With optical interface (EF003028) No
Supporting protocol for TCP/IP (EF003050) No
Supporting protocol for PROFIBUS (EF003052) No
Supporting protocol for CAN (EF003053) No
Supporting protocol for EtherCAT (EF017564) No
Supporting protocol for INTERBUS (EF003054) No
Supporting protocol for ASI (EF003051) No
Supporting protocol for KNX (EF003055) No
Supporting protocol for Modbus (EF003057) No
Supporting protocol for Data-Highway (EF003058) No
Supporting protocol for DeviceNet (EF003059) No
Supporting protocol for SUCONET (EF003060) No
Supporting protocol for LON (EF003017) No
Supporting protocol for PROFINET IO (EF007525) Yes
Supporting protocol for PROFINET CBA (EF007524) No
Supporting protocol for SERCOS (EF006657) No
Supporting protocol for Foundation Fieldbus (EF007522) No
Supporting protocol for EtherNet/IP (EF007521) No
Supporting protocol for AS-Interface Safety at Work (EF007519) No
Supporting protocol for DeviceNet Safety (EF007520) No
Supporting protocol for INTERBUS-Safety (EF006662) No
Supporting protocol for PROFIsafe (EF007526) No
Supporting protocol for SafetyBUS p (EF007527) No
Supporting protocol for other bus systems (EF003062) No
IO link master (EF007298) No
System accessory (EF004118) Yes
Redundancy (EF003156) Yes
Type of memory (EF002996) NVRAM
Memory size (EF002997) 8192 kByte
Additional program memory possible (EF003029) Yes
Suitable for rail mounting (EF003972) Yes
Wall mounting/direct mounting (EF007020) No
Front built-in possible (EF007016) No
Rack-assembly possible (EF007018) No
Suitable for safety functions (EF001597) No
SIL according to IEC 61508 (EF009889) None
Performance level according to EN ISO 13849-1 (EF007399) None
Appendant operation agent (Ex ia) (EF004141) No
Appendant operation agent (Ex ib) (EF004142) No
Explosion safety category for gas (EF003997) None
Explosion safety category for dust (EF003998) None
Width (EF000008) 45 mm
Height (EF000040) 125.893514 mm
Depth (EF000049) 74.25 mm
