View larger
Images are for illustrative purposes only. Please refer to data sheet for details

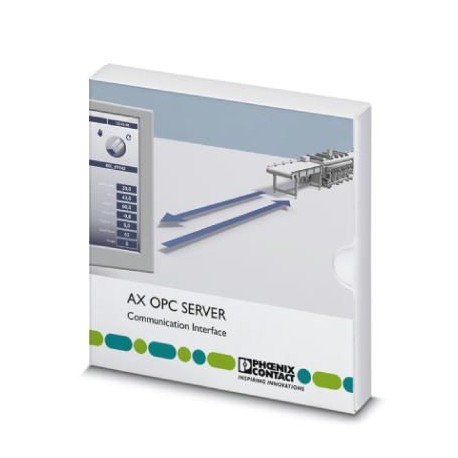

AX OPC SERVER 2985945 PHOENIX CONTACT Software
AX OPC SERVER
2985945
PHOENIX CONTACT
1 Pcs.
Software
AX OPC SERVER, communication interface for visualization suitable for OPC, with WORX PC-based control systems
Automation > Visualization software
Automation Software (AS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2985945 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 67 (C-6-2017) |
| GTIN | 4046356103497 |
| Weight per Piece (excluding packing) | 81.000 g |
| Custom tariff number | 85234910 |
| Country of origin | DE (Germany) |
License information
| Intended use for the software | Runtime license |
|---|---|
| Type of license | Single-user license |
| Information regarding the version | Valid for Version 3.09x (for features of older versions, please refer to the version information in the download area) |
| The versions of devices, other software packages or the operating system must be kept up to date. |
Functions
| Basic functions | Supports OPC standard functions and all the optional interfaces (in accordance with OPC spec. DA 1.0a and DA 2.04/2.05) |
|---|---|
| Simultaneous support to several controllers | |
| Integrated OPC testing and diagnostics client | |
| System limits | 64 Ethernet connections |
| Supported controllers | ILC 1xx, AXC 1xxx, ILC 3xx, AXC 3xxx, RFC 4xx, PC WORX RT BASIC/SRT |
| Number of supported controllers | max. 64 |
| Number of OPC items | max. 20000 (active OPC tags, arrays and structures count as 1 item) |
| 4500 (active OPC tags per controller; arrays and structures count as 1 item) | |
| Supported data types (standard) | BOOL, BYTE, INT, DINT, UINT, SINT, USINT, UDINT, WORD, DWORD, REAL, LREAL, STRING, TIME according to IEC 61709 |
| Supported data types (user-defined) | ARRAY OF, STRUCTS, ARRAY OF STRUCT, STRUCT in STRUCT according to IEC 61131 |
Hardware requirements
| Hard disk | min. 2 GByte |
|---|---|
| RAM | min. 1 GByte (2 GB for Windows Vista and Windows 7) |
| CPU | min. Intel®Core™ i3-2100 (2 GHz) |
| Interfaces | min. Gigabit Ethernet |
Software requirements
| Software | PC WORX Version 3 or later| |
|---|---|
| Operating system | Windows®7 Professional SP1 (32-Bit/64-Bit) |
| Windows®7 Ultimate SP1 (32-Bit/64-Bit) | |
| Windows®8.1 Professional (32-Bit/64-Bit) | |
| Windows®8.1 Enterprise (32-Bit/64-Bit) | |
| Windows®10 (32-bit/64-bit), as of Build 1511 | |
| Languages supported | German, English |
General information
| Information regarding the system requirements | Note the individual properties and requirements of the devices. Should you have any questions, please contact the Support team directly or the relevant contact person in Sales. |
|---|---|
| Information regarding the update rate | Guaranteed update rates greatly depend on the selected controller, the control capacity, and the selected PC. |
Classifications
eCl@ss 4.027240409eCl@ss 4.127338001eCl@ss 5.027242215eCl@ss 5.127240600eCl@ss 6.027242500eCl@ss 7.027242502eCl@ss 8.027242502eCl@ss 9.027242502
| Feature Name | Feature Value |
|---|---|
| With OPC-interface, server (EF003172) | No |
| With OPC-interface, client (EF003173) | No |
| With programming interfaces (EF003174) | No |
| Multi-user capable, runtime (EF003152) | No |
| Max. number of clients (EF003154) | 0 |
| Suitable for web-clients (EF003155) | No |
| SCADA functionality (EF007458) | No |
| Alarm-management (EF006805) | No |
| Trend representation (EF007510) | No |
| Online projecting possible (EF003158) | No |
| Language switch possible (EF007493) | No |
| With script language Visual Basic (EF003163) | No |
| With other script language (EF003164) | No |
| Library with object elements (EF003165) | Not available |
| User groups (password protection) possible (EF003166) | No |
| Function process diagnostics (EF003170) | Not available |
| Min. required processor speed for runtime system (EF003175) | 2000000000 GHz |
| Min. required processor speed for configuration software (EF003181) | 2000000000 GHz |
