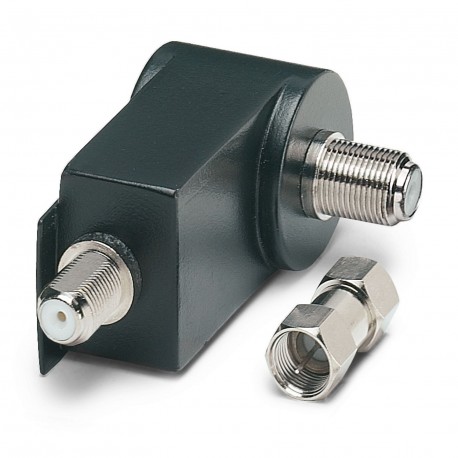

C-TV-SAT 2856993 PHOENIX CONTACT Attachment plug with surge protection for antenna inputs with F connector
C-TV-SAT
2856993
PHOENIX CONTACT
1 Pcs.
Attachment plug with surge protection for antenna inputs with F connector
Adapter with surge protection for antenna inputs with F connector.
Surge-protected adapter for antenna inputs with F connector.
Automation > Surge protection device for data networks/MCR-technology
Trabtech (TT)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Dimensions
| Height | 44 mm |
|---|---|
| Width | 28 mm |
| Depth | 66 mm |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 75 °C |
|---|---|
| Degree of protection | IP20 |
General
| Housing material | PA |
|---|---|
| Flammability rating according to UL 94 | V0 |
| Color | black |
| Standards for cearances and creepage distances | DIN VDE 0110-1 |
| IEC 60664-1 | |
| Overvoltage category | II |
| Pollution degree | 2 |
| Mounting type | Connection-specific intermediate plugging |
| Type | Attachment plug |
| Number of positions | 1 |
| Direction of action | Line-Shield/Earth Ground |
Protective circuit
| IEC test classification | C1 |
|---|---|
| C2 | |
| C3 | |
| D1 | |
| Maximum continuous voltage UC | 180 V DC |
| 130 V AC | |
| Maximum continuous voltage UC(wire-shield) | 180 V DC |
| Nominal current IN | 1.5 A (25 °C) |
| Operating effective current ICat UC | ≤ 1 µA |
| Nominal discharge current In(8/20) µs (Core-Shield) | 2.5 kA |
| Total surge current (8/20) µs | 2.5 kA |
| Nominal pulse current Ian (10/1000) µs (Core-Shield) | 120 A |
| Output voltage limitation at 1 kV/µs (Core-Shield) spike | ≤ 600 V |
| Output voltage limitation at 1 kV/µs (Core-Shield) static | ≤ 600 V |
| Residual voltage at In(conductor-shield) | ≤ 30 V |
| Voltage protection level Up(core-shield) | ≤ 700 V (C2 - 4 kV/2 kA) |
| Response time tA (Core-GND) | ≤ 100 ns |
| Input attenuation aE, asym. | 0.5 dB (≤ 2.4 GHz) |
| Cut-off frequency fg (3 dB), asym. (shield) in 75 Ohm system | > 3 GHz |
| Frequency range | 4.7 MHz ... 2.5 GHz |
| Capacity asymmetrical (shield) | typ. 10 pF |
| Impulse durability (conductor-shield) | C2 - 4 kV/2 kA |
| C3 - 100 A | |
| D1 (500 A) | |
| Alternating current carrying capacity (conductor-shield) | 5 A - 1 s |
Connection data
| Connection method | F connector |
|---|---|
| Connection type IN | F connector, female |
| Connection type OUT | F connector, female |
Standards and Regulations
| Standards/regulations | IEC 61643-21 |
|---|---|
| EN 50083 - CLASS A |
