MNT-1 CH II

2882255

PHOENIX CONTACT

1 Pcs.

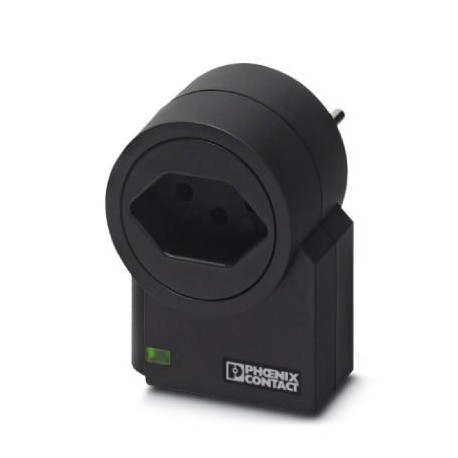

Type 3 surge protection device Adapter with surge protection for power outlets, optical power and fault indication. Country-specific execution: CH

Automation > Surge protection device for terminal equipment
Trabtech (TT)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2882255
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 74 (C-4-2017)
GTIN4046356143547
Weight per Piece (excluding packing)97.350 g
Custom tariff number85363010
Country of originDE (Germany)

Dimensions

Height76 mm
Width56 mm
Depth79 mm

Ambient conditions

Degree of protectionIP20
Ambient temperature (operation)-25 °C ... 75 °C
Ambient temperature (storage/transport)-25 °C ... 75 °C
Altitude≤ 2000 m (amsl (above mean sea level))
Permissible humidity (operation)5 % ... 95 %

General

EN typeT3
Number of portsOne
Mode of protectionL-N
L-PE
N-PE
Mounting typePlugging into the mains socket
Colorjet black RAL 9005
Housing materialPA 6
Degree of pollution2
Flammability rating according to UL 94V-0
TypeAttachment plug
Surge protection fault messageoptical
For country-specific use inCH

Protective circuit

Nominal voltage UN230/400 V AC (TN)
230/400 V AC (TT - only in use with RCD)
Nominal frequency fN50 Hz (60 Hz)
Maximum continuous operating voltage UC(L-N)275 V AC
Maximum continuous operating voltage UC(L-PE)360 V AC
Maximum continuous operating voltage UC(N-PE)360 V AC
Rated load current IL10 A
Residual current IPE≤ 5 µA
Nominal discharge current In(8/20) µs3 kA (> 5x)
Standby power consumption PC≤ 1 VA
Reference test voltage UREF255 V AC
Combination wave UOC4 kV
Energy absorption symmetrical140 J (L-N (L))
Enery absorption, asymmetrical220 J (L(N)-PE)
Voltage protection level Up(L-N)≤ 1.2 kV
Voltage protection level Up(L-PE)≤ 1.5 kV
Voltage protection level Up(N-PE)≤ 1.5 kV
TOV behavior at UT(L-N)335 V AC (5 s / withstand mode)
440 V AC (120 min / safe failure mode)
TOV behavior at UT(L-PE)440 V AC (5 s / withstand mode)
440 V AC (120 min / withstand mode)
1455 V AC (200 ms / safe failure mode)
TOV behavior at UT(N-PE)1200 V AC (200 ms / safe failure mode)
Response time tA(L-N)≤ 25 ns
Response time tA(L-PE)≤ 100 ns
Response time tA(N-PE)≤ 100 ns
Max. required back-up fuse10 A (gG / B / C)
Short-circuit current rating ISCCR1.5 kA AC
Max. backup fuse with branch wiring10 A (gG / B / C)

Connection data

Connection methodGrounding plug/socket

Standards and Regulations

Standards/specificationsIEC 61643-11 2011
EN 61643-11 2012

Classifications


ETIM for 2882255 Earthing, lightning and surge protection (EC000942)
Feature Name Feature Value
Max. continuous voltage AC (EF004198) 360 V
Voltage protection level L-N (EF004236) 1.5 kV
With remote signalling contact (EF000422) No
Signalling at the device (EF004241) Optic
Category type 3 (EF004231) Yes
Degree of protection (IP) (EF005474) IP20

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
