View larger
Images are for illustrative purposes only. Please refer to data sheet for details

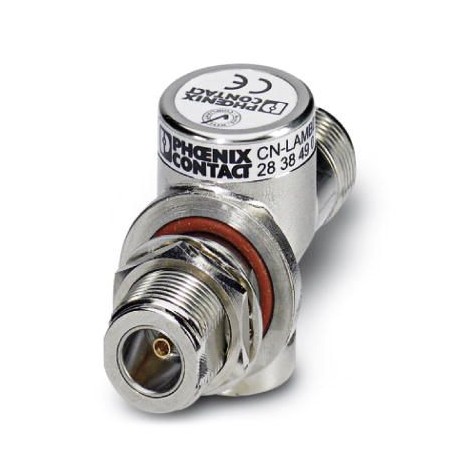

CN-LAMBDA/4-5.9-BB 2838490 PHOENIX CONTACT Surge protection device
CN-LAMBDA/4-5.9-BB
2838490
PHOENIX CONTACT
1 Pcs.
Surge protection device
Adapter with Lambda/4 technology as surge protection for coaxial signal interfaces. Connection: N Female-Female Connectors
Automation > Surge protection device for data networks/MCR-technology
Trabtech (TT)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2838490 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 179 (C-4-2017) |
| GTIN | 4046356285629 |
| Weight per Piece (excluding packing) | 140.190 g |
| Custom tariff number | 85363010 |
| Country of origin | US (United States) |
General
| Housing material | Brass (CuZn) |
|---|---|
| Color | nickel |
| Mounting type | Connection-specific intermediate plugging |
| Type | Attachment plug |
| Number of positions | 1 |
| Direction of action | Line-Shield/Earth Ground |
Protective circuit
| IEC test classification | C2 |
|---|---|
| C3 | |
| D1 | |
| VDE requirement class | C2 |
| C3 | |
| D1 | |
| Rated current | 5 A (25 °C) |
| Nominal discharge current In(8/20) µs (line-earth) | 50 kA |
| Nominal discharge current In(8/20) µs (line-shield) | 50 kA |
| Pulse discharge current Iimp(10/350) µs (line-earth) | ≤ 20 kA |
| Total discharge current Itotal(8/20) µs | 60 kA |
| Total discharge current Itotal(10/350) µs | 20 kA |
| Max. discharge current Imax(8/20) µs maximum (line-earth) | 60 kA |
| Max. discharge current Imax(8/20) µs maximum (line-shield) | 60 kA |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 11 V (6 kV / 3 kA) |
| Output voltage limitation at 1 kV/µs (line-shield) spike | ≤ 11 V (6 kV / 3 kA) |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 11 V (6 kV / 3 kA) |
| Output voltage limitation at 1 kV/µs (line-shield) static | ≤ 11 V (6 kV / 3 kA) |
| Voltage protection level Up(line-earth) | ≤ 11 V (6 kV / 3 kA) |
| Voltage protection level Up(line-shield) | ≤ 11 V (6 kV / 3 kA) |
| Input attenuation aE, asym. | typ. 0.05 dB (≤ 0.15 dB) |
| Frequency range | 2.4 GHz ... 5.9 GHz |
| Standing wave ratio SWR in a 50 Ω system | typ. 1.1 (≤ 1.20 (2.4 GHz...5.9 GHz)) |
| Permissible HF power Pmaxat VSWR = xx (50 ohm system) | ≤ 500 W |
| ≤ 4 kW (peak) | |
| Surge protection fault message | none |
| Impulse durability (line-earth) | C2 - 10 kV/5 kA |
| D1 - 2.5 kA | |
| Impulse durability (line-shield) | C2 - 10 kV/5 kA |
| D1 - 2.5 kA |
Connection data
| Connection method | N Connector |
|---|---|
| Connection method IN | N connector, female |
| Connection method OUT | N connector, female |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
