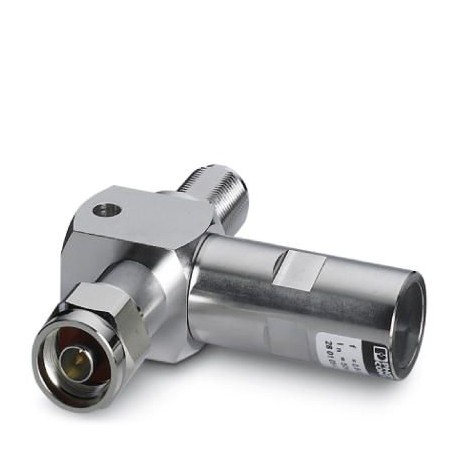

PHOENIX CONTACT CN-LAMBDA/4-2.25-SB CN-LAMBDA/4-2.25-SB 2801056 PHOENIX CONTACT Surge protection device View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CN-LAMBDA/4-2.25-SB 2801056 PHOENIX CONTACT Surge protection device

CN-LAMBDA/4-2.25-SB

2801056

PHOENIX CONTACT

1 Pcs.

Surge protection device Adapter with Lambda/4 technology as surge protection for coaxial signal interfaces. Connection: N male-female connectors

Automation > Surge protection device for data networks/MCR-technology
Trabtech (TT)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2801056
Packing unit1 pc
Catalog pagePage 178 (C-4-2017)
GTIN4046356678247
Weight per Piece (excluding packing)260.000 g
Custom tariff number85363010
Country of originCN (China)

Dimensions

Height77.5 mm
Width25 mm
Length81.5 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 85 °C
Altitude2000 m
Degree of protectionIP68

General

Housing materialHPb59-1
Colornickel
Standards for cearances and creepage distancesIEC 60664-1
Mounting typeConnection-specific intermediate plugging
TypeAttachment plug
Number of positions1
Direction of actionLine-Shield/Earth Ground

Protective circuit

IEC test classificationC2
C3
D1
VDE requirement classC2
C3
D1
Nominal current IN5 A (25 °C)
Nominal discharge current In(8/20) µs (line-earth)50 kA
Nominal discharge current In(8/20) µs (line-shield)50 kA
Total surge current (8/20) µs60 kA
Total surge current (10/350) µs20 kA
Max. discharge current Imax(8/20) µs maximum (line-earth)60 kA
Max. discharge current Imax(8/20) µs maximum (line-shield)60 kA
Impulse discharge current (10/350) µs, peak value limp≤ 20 kA
Output voltage limitation at 1 kV/µs (line-earth) spike≤ 1 V
Output voltage limitation at 1 kV/µs (line-shield) spike≤ 1 V
Output voltage limitation at 1 kV/µs (line-earth) static≤ 1 V
Voltage protection level Up(line-earth)≤ 15 V (6 kV / 3 kA)
≤ 5 V (C1 - 1 kV/500 A)
≤ 25 V (C2 - 10 kV / 5 kA)
Voltage protection level Up(line-shield)≤ 25 V (C2 - 10 kV / 5 kA)
≤ 5 V (C1 - 1 kV/500 A)
≤ 15 V (6 kV / 3 kA)
Input attenuation aE, asym.≤ 0.2 dB (50 Ω)
Frequency range0.8 GHz ... 2.25 GHz
Standing wave ratio SWR in a 50 Ω systemtyp. 1.2
max. 1.25
Permissible HF power Pmaxat VSWR = xx (50 ohm system)≤ 500 W
≤ 4 kW (peak)
Surge protection fault messagenone
Impulse durability (line-earth)C1 - 1 kV/500 A
C2 - 10 kV/5 kA
D1 - 2.5 kA

Connection data

Connection methodN connector 50 Ω
Connection method INN connector, male
Connection method OUTN connector, female

Standards and Regulations

Standards/specificationsIEC 61643-21/A1 2008
EN 61643-21/A1 2009
