View larger
Images are for illustrative purposes only. Please refer to data sheet for details

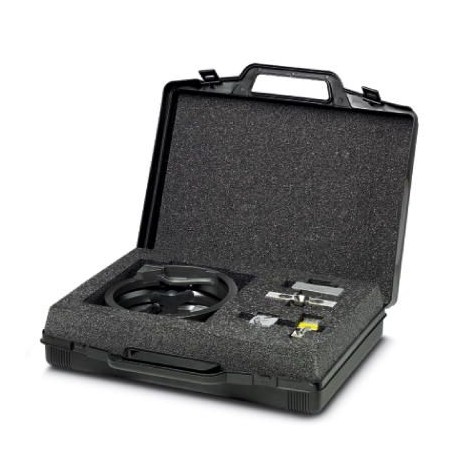

CF 1000-TOOLKIT 0,34/ 6 1208212 PHOENIX CONTACT Conversion kit
CF 1000-TOOLKIT 0,34/ 6
1208212
PHOENIX CONTACT
1 Pcs.
Conversion kit
Equipment set for CF 1000-1.5 up to serial number 16059, for insulated ferrules according to DIN 46228-4: 2017-05, cross-sectional area: 0.25-0.34 mm², stripping length: 6 mm
Tools > Stripping and crimping machine
TOOL fox
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1208212 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 480 (C-5-2013) |
| GTIN | 4046356011365 |
| Weight per Piece (excluding packing) | 1,639.400 g |
| Custom tariff number | 84799070 |
| Country of origin | DE (Germany) |
General
| Compression | Trapezoidal crimp |
|---|---|
| Type of contact | Ferrules |
| Min. AWG, flexible, multi-strand | 22 |
| AWG max., flexible, multi-strand | 24 |
| Min. cross section | 0.25 mm² |
| Max. cross section | 0.34 mm² |
| AWG min | 24 |
| AWG max | 22 |
Classifications
eCl@ss 10.0.117139201eCl@ss 4.021040301eCl@ss 4.121040301eCl@ss 5.021040301eCl@ss 5.121040300eCl@ss 6.021049000eCl@ss 7.021049090eCl@ss 8.021049090eCl@ss 9.017139201
| Feature Name | Feature Value |
|---|---|
| Adjustable conductor cross section (EF008548) | 0.25 mm² |
| Function (EF000030) | Other |
| Strip length (EF006824) | 6 mm |
