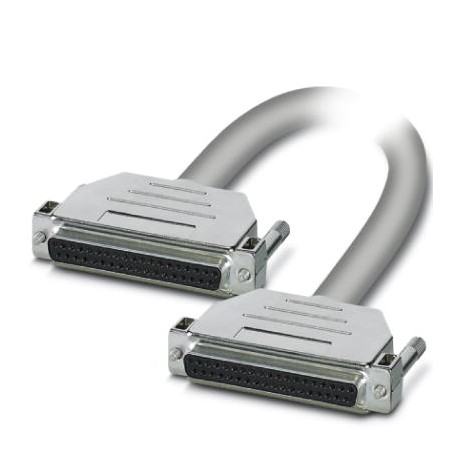

PHOENIX CONTACT CABLE-D37SUB/B/B/2000/KONFEK/S CABLE-D37SUB/B/B/2000/KONFEK/S 2900764 PHOENIX CONTACT Cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CABLE-D37SUB/B/B/2000/KONFEK/S 2900764 PHOENIX CONTACT Cable

CABLE-D37SUB/B/B/2000/KONFEK/S

2900764

PHOENIX CONTACT

1 Pcs.

Cable Shielded ready-made round cable; Connection 1: Female connection D-SUB (1x 37-poles); Connection 2: Female connection D-SUB (1x 37-poles); Cable length: 20 m

Cables > PLC connection cable
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2900764
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 593 (C-5-2017)
GTIN4046356529075
Weight per Piece (excluding packing)4,137.000 g
Custom tariff number85444290
Country of originDE (Germany)

General

Nominal voltage UN25 V AC
60 V DC
Max. current carrying capacity per path2 A
Max. conductor resistance≤ 0.09 Ω/m
Length of cable20 m
Single wire, cross section0.25 mm²
Single wire, cross section [AWG]24
External diameter12 mm
Shieldingyes
Tinned copper-braided shield, approx. 85% covering
Insertion/withdrawal cycles> 200

Environmental conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C
Flame resistanceIEC 60332-1
DIN VDE 0482 Part 332-1

Connector 1

Connection nameField level
Connection methodD-SUB socket strip
Number of connections1
Number of positions37

Connector 2

Connection nameController level
Connection methodD-SUB socket strip
Number of connections1
Number of positions37

Supported controller

Controlleruniversal

Color code

Connector 1 = connector 2 (optional) = wire colorD-SUB37 (1) = D-SUB37 (1) = white
D-SUB37 (2) = D-SUB37 (2) = brown
D-SUB37 (3) = D-SUB37 (3) = green
D-SUB37 (4) = D-SUB37 (4) = yellow
D-SUB37 (5) = D-SUB37 (5) = gray
D-SUB37 (6) = D-SUB37 (6) = pink
D-SUB37 (7) = D-SUB37 (7) = blue
D-SUB37 (8) = D-SUB37 (8) = red
D-SUB37 (9) = D-SUB37 (9) = black
D-SUB37 (10) = D-SUB37 (10) = violet
D-SUB37 (11) = D-SUB37 (11) = gray-pink
D-SUB37 (12) = D-SUB37 (12) = red-blue
D-SUB37 (13) = D-SUB37 (13) = white-green
D-SUB37 (14) = D-SUB37 (14) = brown-green
D-SUB37 (15) = D-SUB37 (15) = white-yellow
D-SUB37 (16) = D-SUB37 (16) = yellow-brown
D-SUB37 (17) = D-SUB37 (17) = white-gray
D-SUB37 (18) = D-SUB37 (18) = gray-brown
D-SUB37 (19) = D-SUB37 (19) = white-pink
D-SUB37 (20) = D-SUB37 (20) = pink-brown
D-SUB37 (21) = D-SUB37 (21) = white-blue
D-SUB37 (22) = D-SUB37 (22) = brown-blue
D-SUB37 (23) = D-SUB37 (23) = white-red
D-SUB37 (24) = D-SUB37 (24) = brown-red
D-SUB37 (25) = D-SUB37 (25) = white-black
D-SUB37 (26) = D-SUB37 (26) = brown-black
D-SUB37 (27) = D-SUB37 (27) = gray-green
D-SUB37 (28) = D-SUB37 (28) = yellow-gray
D-SUB37 (29) = D-SUB37 (29) = pink-green
D-SUB37 (30) = D-SUB37 (30) = yellow-pink
D-SUB37 (31) = D-SUB37 (31) = green-blue
D-SUB37 (32) = D-SUB37 (32) = yellow-blue
D-SUB37 (33) = D-SUB37 (33) = green-red
D-SUB37 (34) = D-SUB37 (34) = yellow-red
D-SUB37 (35) = D-SUB37 (35) = green-black
D-SUB37 (36) = D-SUB37 (36) = yellow-black
D-SUB37 (37) = D-SUB37 (37) = gray-blue

Standards and Regulations

Flame resistanceIEC 60332-1
DIN VDE 0482 Part 332-1
Connection in acc. with standardCUL

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
